TTR 7600 Infinity
Power
75 HP
Engine
Kohler - Turbo Stage 3B - 4 cyl - 16V - 2482 cc
Transmission
Hydrostatic transmission with continual speed variation with 3 electric, shift-on-the-go ground speeds for each mechanical speed, electrohydraulic reverser;
Weight (KG)
2165÷2355 rollbar- 2295÷2485 cab
Capacity (KG)
2400

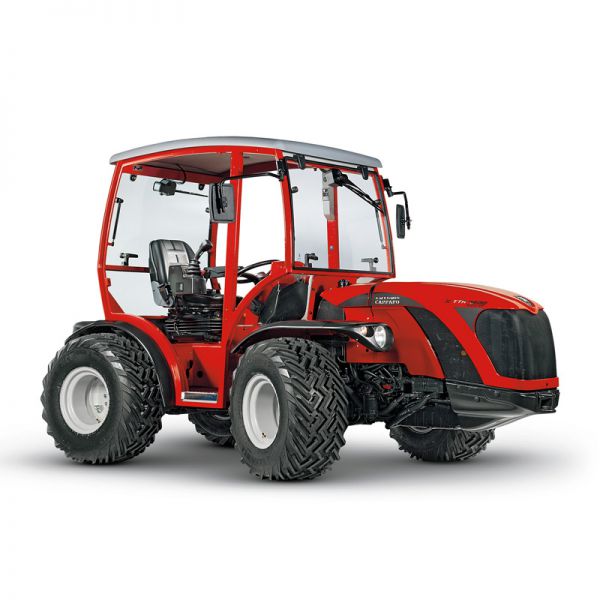

TTR 7600 INFINITY - Wide-track hydrostatic tractor for steep slopes

TTR 7600 Infinity (75 hp Kohler engine) is a wide-track steering tractor with reverse drive, isodiametric wheels and a low center of gravity, which makes it ideal for working on steep slopes, in tasks such as haymaking. The structure of the tractor confers a sensation of extreme stability and safety when working on slopes, even on mountainsides, with unrivalled speed, precision and freedom of movement.
The Infinity's hydrostatic transmission offers all the desirable work speed ranges from 0 to 40 km/h, and allows you to work in these same speeds in both directions of travel. The reversing shuttle control (on the steering wheel) can be operated at any time. The gearbox has two mechanical ranges, each with 3 hydrostatic speeds, which can engaged on the move without loss of traction or power interruption, for smooth and agile operation at all times, whether shifting gear or dealing with sudden changes in gradient.

TTR 7600 Infinity is also suitable for grass cutting and the maintenance of urban areas or green spaces (sports grounds).
Braking is assisted also on slopes thanks to the drive pedal, which, when released, stops the tractor without having to use the brakes.

Available with the spacious Extra Comfort cab, equipped with a large platform and extensive area for 360° visibility and maximum interior light.



INTELLIGENT HYDROSTATICS - The Infinity Series is comprised of three hydrostatic tractors with 75 hp Kohler engines, characterized by a high level of operational flexibility and featuring advanced technology and functions derived from high end AC models. The hybrid mechanical-hydrostatic transmission offers infinite work speeds and, by eliminating the use of the clutch, makes work significantly less stressful for the operator. All the useful functions of the Infinity are digitalized: the operator can select the optimum configuration for any task simply by pressing the pushbutton controls. The instrument panel is designed to make operation easy and intuitive, and, among other features, offers the possibility to choose between 4 different driving modes for tractor speed and engine rpm control.

Plus

Antonio Carraro | Plus | ACTIO

ACTIO™

RGS™

Antonio Carraro | steering tractors

Steering wheels

Antonio Carraro | Transmission | Hydrostatic continuous speed variation SRH Infinity

INFINITY Transmission

UNIFLEX® Suspension

Antonio Carraro | Options | Seat with pneumatic suspension

Pneumatic seat

Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

Antonio Carraro | Plus | Vertical tie-rod and hydraulic thirdpoint

Vertical tie-rod and hydraulic thirdpoint

Antonio Carraro | Radiator cleaning | Cleanfix

ACS - Auto-cleaning system

Antonio Carraro | Optional | Air conditioner

Air conditioner

Cabs

Extra Comfort TTR Cab

CLOSED CAB
TTR Extra Comfort cab is a homologated, original AC product. Its sober, elegant design provides a total-glass structure in order to offer total visibility and on-board brightness. TTR in its standard version offers an open cab with front and rear windscreens. Often, however, the operator demands more comfort within a closed, air-conditioned cab, Wide and comfortable, Extra Comfort ensures protection in warm, cold or dusty environments, for mowing, road maintenance or construction. It deadens noises and vibratuions, giving the operator an excellent air-conditioning.

All the glass parts of the cabin can be opened.

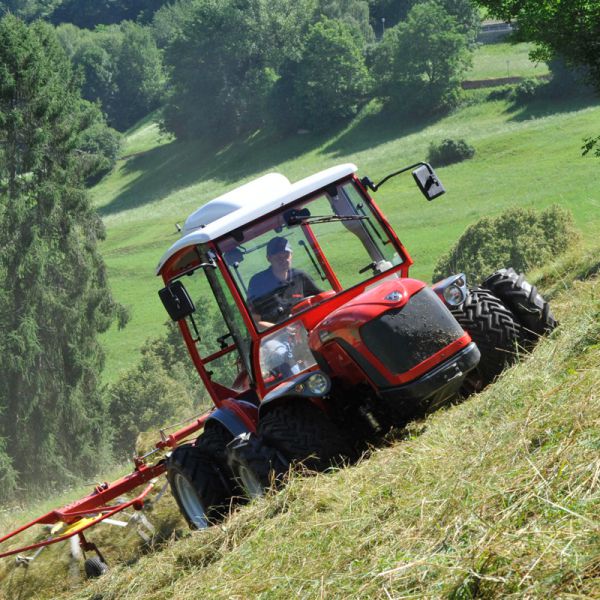

UNIFLEX® SUSPENSION

The UNIFLEX* suspension with electronic control allows for part of the weight of the equipment to be transferred to the tractor’s wheels. The reduction of specific ground pressure leads to numerous positive effects:
Lower compaction
Less resistance to pushing and pulling
Greater productivity
Lower fuel consumption
Greater grip
Greater stability
Damping

 The UNIFLEX suspension with coaxial cylinders maximises its efficiency thanks to a reduced number of friction points.  Its innovative concept allows the equipment to follow and adapt itself to the contours of the ground, keeping the ground pressure constant thus benefitting speed and work precision.

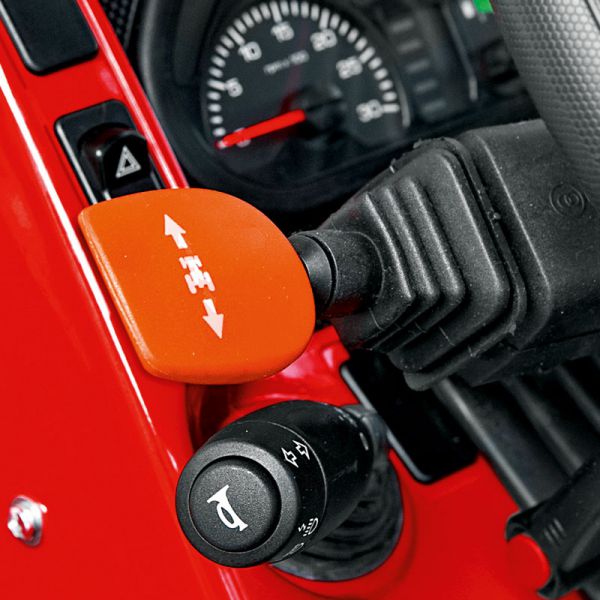

Infinity transmission

TTR has two mechanical speed ranges (0-15 and 0-40 km/h), each offering three hydrostatic speeds, which can also be engaged while travelling without loss or traction or power interruption; all comfortably controlled using the joystick fitted as standard.

Tempomat-eco-pedale

Tempomat / Cruise Control – Revolution and speed active independent control system. Both can be kept constant also in case of inconsistent stresses.

Eco – Consumption and noise reduction system that automatically takes the engine from the maximum revolution regime to the minimum required for maximum speed (40 km/h).

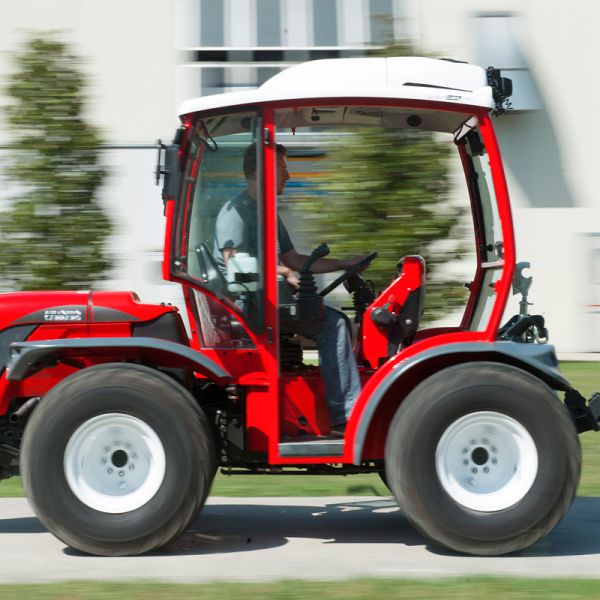

Advancement pedal – assisted braking also in case of slopes, with complete safe stop of the vehicle upon release of the accelerator, even when not using the brakes or the clutch.


*optional
Antonio Carraro | Plus | ACTIO

ACTIO™

AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
MORE

RGS™

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
MORE
Antonio Carraro | steering tractors

Steering wheels

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.

*optional
Antonio Carraro | Transmission | Hydrostatic continuous speed variation SRH Infinity

INFINITY Transmission

Hydrostatic continuous-variable transmission with 3 electronic shift-on-the-go speeds for each mechanical range, electro-hydraulic reverser; Mechanical selector of the 2 speed ranges (field and road); Continuous-variable speed in both forward and reverse from 0 to 40 km/h; “Eco” System: it maintains the maximum speed with a low diesel engine speed; “Automotive” device; Speed control with ESC (Electronic Speed Control) “RPM recall” System: it recalls the manually preset rpm or, when the Automotive function is activated, automatically control the engine speed from the minimum revs up to the preset revs; PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser, PTO selector and clutch; Hydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch

UNIFLEX® Suspension

The UNIFLEX suspension with coaxial cylinders maximises its efficiency thanks to a reduced number of friction points. Its innovative concept allows the equipment to follow and adapt itself to the contours of the ground, keeping the ground pressure constant thus benefitting speed and work precision.

Optional
Antonio Carraro | Options | Seat with pneumatic suspension

Pneumatic seat

Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).

Optional
Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
[read]
Antonio Carraro | Plus | Vertical tie-rod and hydraulic thirdpoint

Vertical tie-rod and hydraulic thirdpoint

Optimizes the positioning and inclination of the equipment.

Optional
Antonio Carraro | Radiator cleaning | Cleanfix

ACS - Auto-cleaning system

Reverse flow fan that assures the constant cleaning and efficienc of the radiator and of the front grille of the bonnet.

Optional
Antonio Carraro | Optional | Air conditioner

Air conditioner

The soundproof cab offers also an automatically controlled air conditioning system.
Optional
