TECHNICAL DATA:
HR 6500
The description and illustrations in this brochure are provided simply for information purposes; they are not binding and may be varied at any time without notice.
ANTONIO CARRARO SPA
Via Caltana, 24
35011 Campodarsego Padova ITALY
antoniocarraro.com
COD. 4 7318 137 - 06/2012
StarLight cab
EasyStar chassis

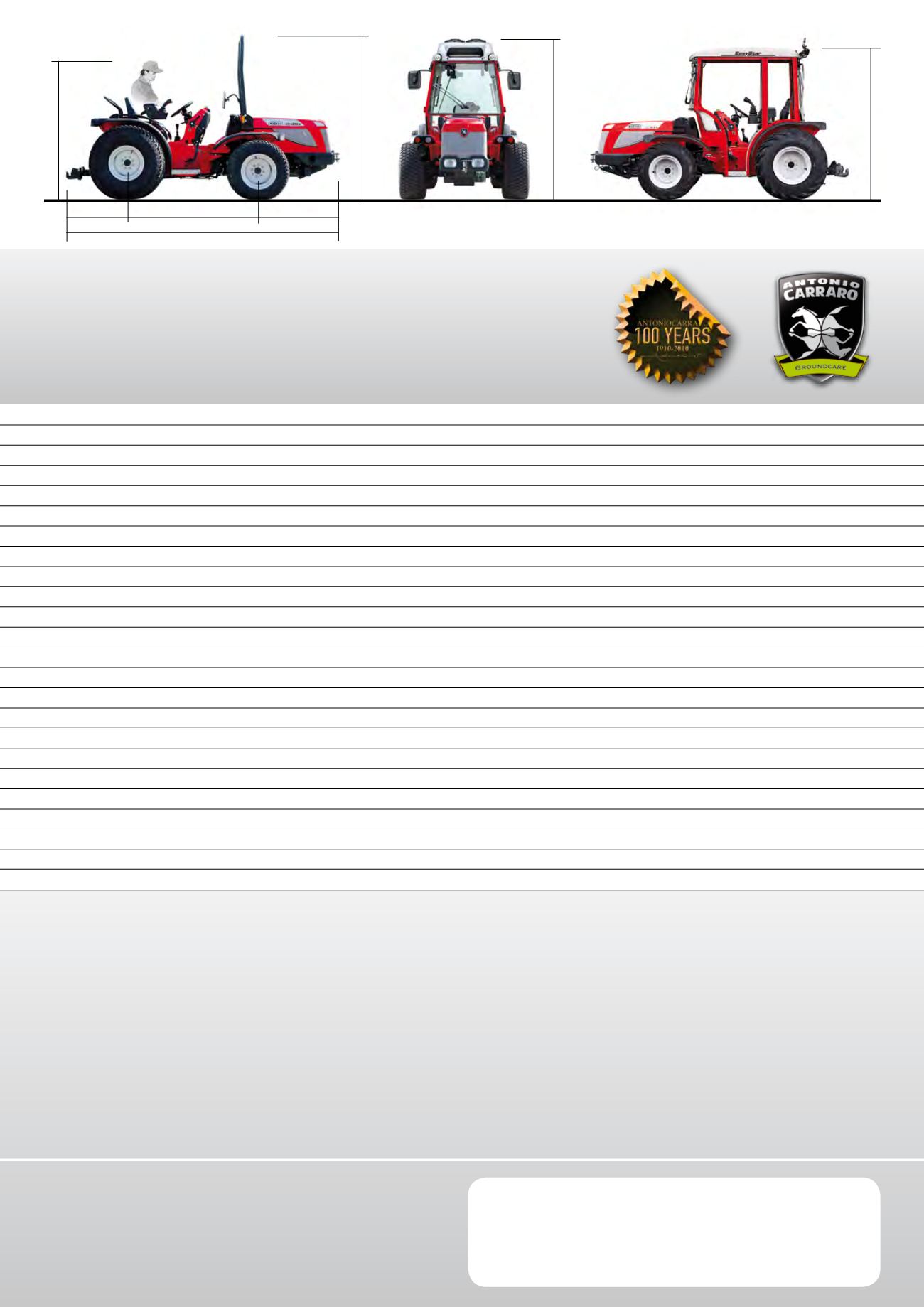

DIMENSIONS
(mm/in)
2155/84.8
1750*/68.9*
The dimensions are calculated in mm/in with 260/70 R16 front, 300/70 R20 rear tyres
*
Height calculated with the operator of average height sitting (mm/in 1750/68.9)
3390/133.5
750/29.2 1565/61.66 1075/42.3
2075/81.7
1975/77.7
Chassis
Engine
Type
Transmission
PTO
Shaft
Transmission clutch
Drive disengagement
Rear hydraulic lift
Operating Pressure (bar/psi)
Steering
Brakes
Platform
Tyres
Front
Rear
Min. ext. width (mm/in)
Ground clearance (mm/in)
Weight
in order of speed
Standard Features
Optional Features
ACTIO
TM
– Full chassis with oscillation • Steering wheels • Reversibility RGS
TM
• 4 unequal wheel drive
Diesel indirect injection with counter rotating weight system
Laws regarding emissions: Stage 3A
N° Cylinders: 4 Turbo
Displacement (CC): 2216
Power kW/HP (97/68/CE): 41,5/57
Maximum engine revs: 2600
Torque max (Nm/revs): 185/1800
Cooling: Water
Tank Capacity (litres/gal): 50/13
Hydrostatic – Continual variation of forward speeds in both drive direction from 0>35 Km/h with a
mechanical selector of the 4 speed variator – Electrohydraulic reverser under the steering wheel
- Speed control with "Speed-fix"
Rear, independent and synchronised at 540/540E rpm with progressive electrohydraulic engagement
Profile 1” 3/8 with 6 splines with facilitated engagement
Hydraulic control
Electro-hydraulic control on the front
With 3 point hitch and adjustable lowering speed control - Capacity (Kg/lbs): 2100/4630
160/2320
Hydraulic with 2 pistons with “Load sensing”
Standard: Hydraulic front and rear disk brakes in oil bath - Independent rear steering brakes
- Emergency and parking: band type on transmission
Suspended on Silent Block
260/70 R16
31x15.50-15
29x12.50-15 Garden
300/70 R20
450x55-17
36x13.50-15 Garden
1400/55.1
1670/65.7
1565/61.6
245/9.64
235/9.25
230/9.05
With roll bar (Kg/lbs): 1950 With chassis (Kg/lbs): 2160 With cab (Kg/lbs): 2200
Reversible control tower • Rear or front/rear differential locks with electrohydraulic control • Hydraulic system with
2 separate hydraulic pumps • Adjustable steering wheel • Lifting bar with quick release couplings • Adjustable,
suspension seat • Safety Belts • Foldable safety frame • Auxiliary rear hydraulic remotes with 1 double acting
distributor with floating position, (total 2 quick couplings) • Rear adjustable height tow hitch • Front tow hitch
• Multifunctional dashboard with digital ground speed and PTO rpm indication
• Star Light cab with air conditioning system and window on the roof, suspended on Silent Blocks • EasyStar
safety chassis with 6 uprights, fitted on Silent-block, with roof and left rear view mirror, (optional) front and rear
windscreens complete with wipers and right rear view mirror • Rear power lift with suspension (2+2 pistons)
• Front power lift • Lifting and hydraulic outlets controlled by electrohydraulic ON/OFF Joystick with 2 speeds
• Power lift with position and draft control • Adjustable lifting bar with quick release couplings • Power lift with
hydraulic 3rd point and vertical adjusting links • Rear PTO 540/1000 rpm • Pneumatic suspension seat
•
Grammer
seat • Slider trailer hook • Cast iron wheel centre for 20” rear wheels • Front bullbar
