YANMAR Stage 3A - 4 Cylinders - Power 36,5 kW / 49,7 HP 3000 rpm 2190 CC
Synchronized 32 speed gear box: 16 forward and 16 reverse with synchronized inverter
With roll bar 1735÷1825 Kg - With cab: 1910÷2000 Kg

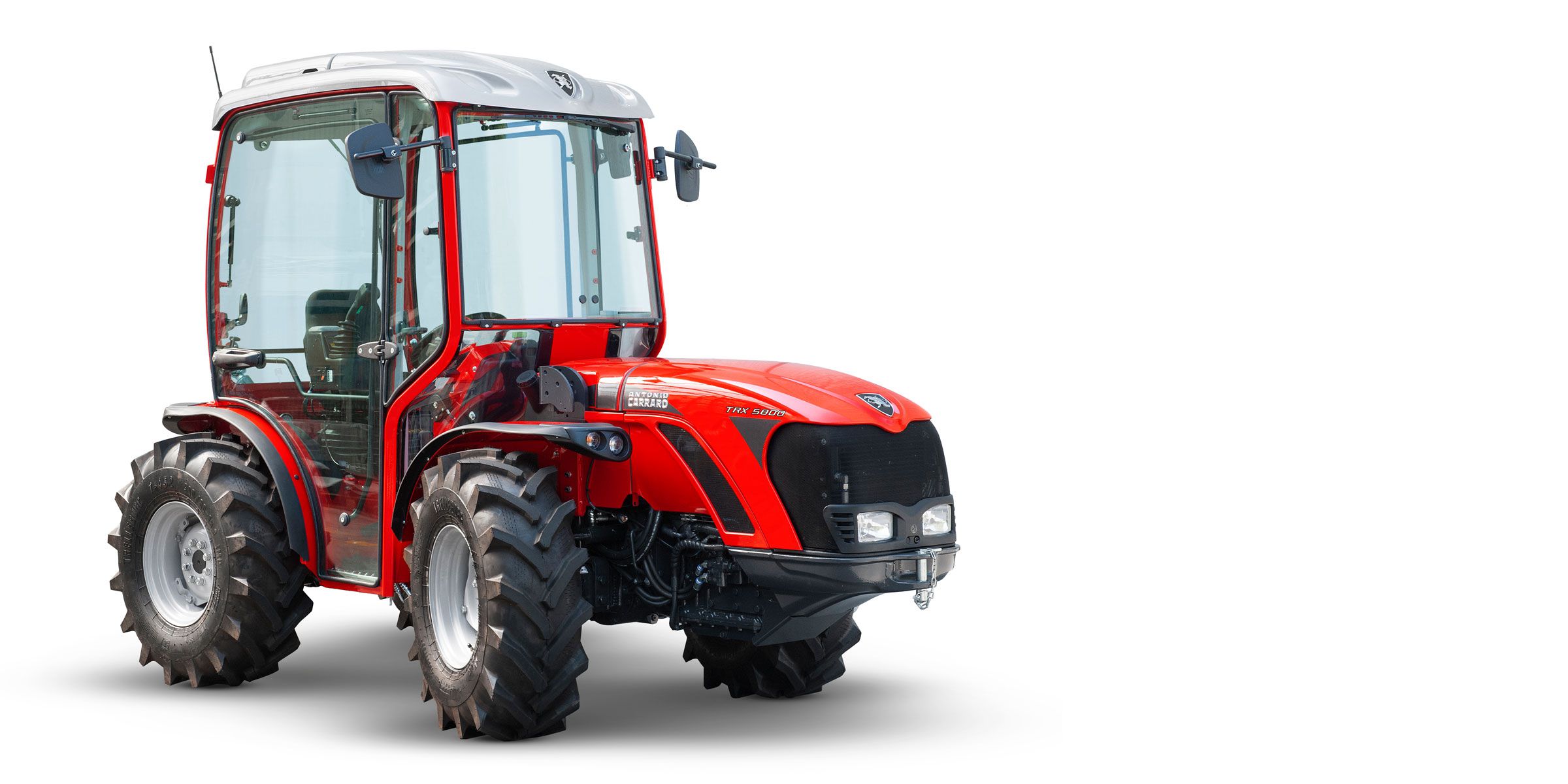

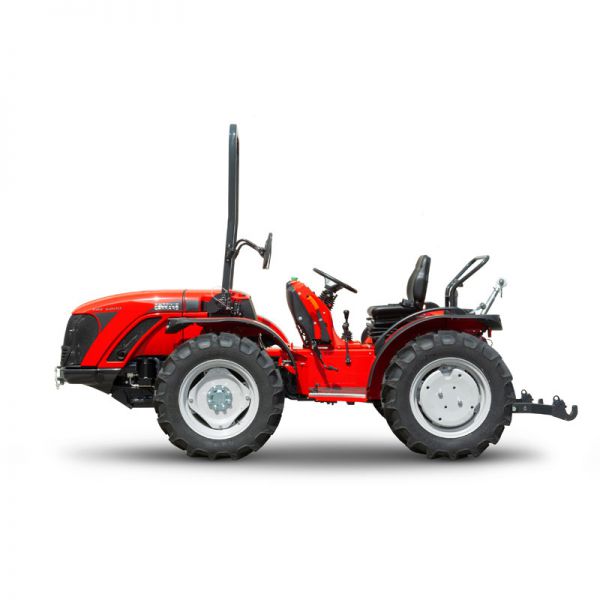

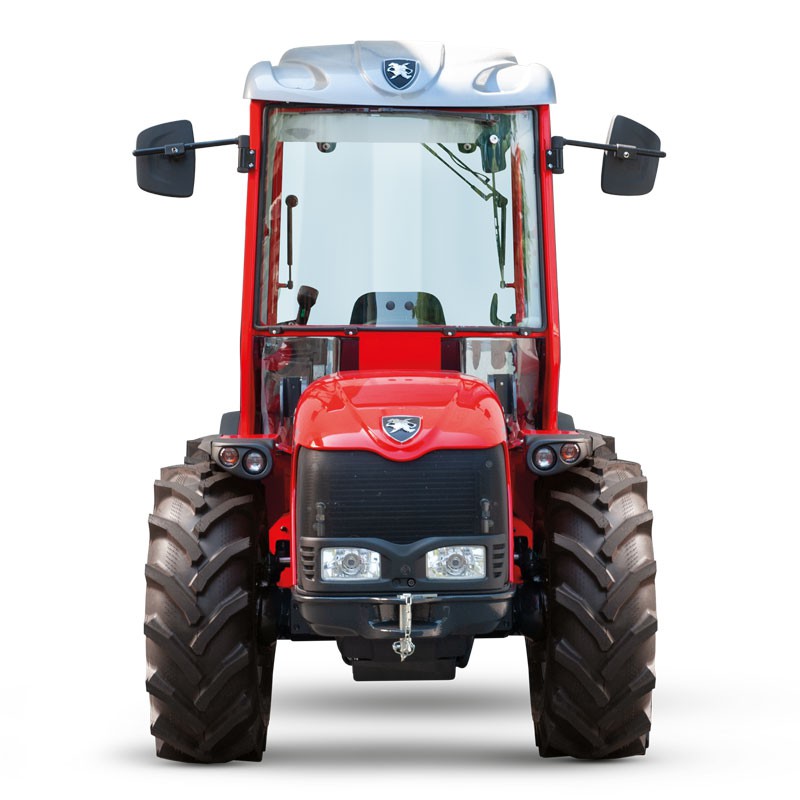

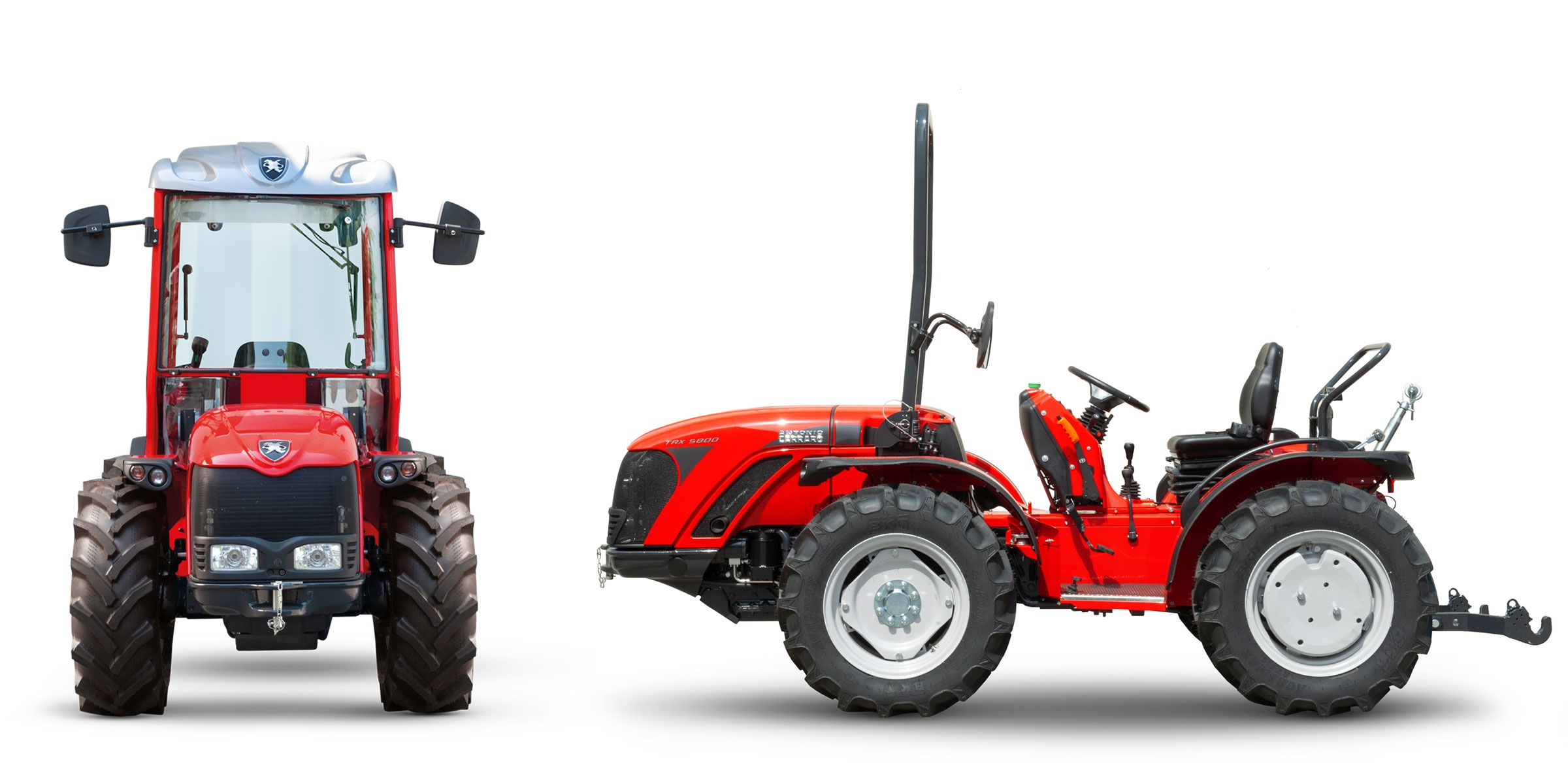

THE NEW 50 HP MULTI-PURPOSE REVERSIBLE TRACTOR
It's the new 50 hp multi-purpose with reversibledriving position. This machine is a professional isodiametric steering tractor for all requirements, from orchards, vineyards, and groundcare to snow clearing and urban maintenance.
Equipped with a 16+16 mechanical transmission with synchro shuttle, this model is great in confined spaces thanks to its short wheelbase and very tight turning radius. The machine also guarantees stability and constant traction, even on the steepest gradients.
The operator's work is simplified by the reversible driving position and extreme ergonomic design, leading to greater efficiency and faster execution for big savings in time and fuel consumption. The TRX 5800 reversible tractorcan carry multiple implement types – front or rear mounted – for ploughing, crop spraying, vineyard strip management, livestock duties and fruit picking. For applications in the civic sector, the machine can also work with implements for road maintenance, groundcare, forestry, and construction sites.
The lifting capacity is 2.2 tons; the tractor can be optionally equipped with oversized lifting arms for heavier loads and more intensive duty cycles. Optional equipment also includes an uprated oil pump for flow rates of up to 43 l/min.
The generously sized platform mounted on silent blocks assures the transmission is thermally and acoustically isolated from the cab, while also damping vibrations. The suspended pedal board is designed to eliminate openings in the cab floor so the operator is protected from the ingress of dust.
The instrument cluster is of the very latest generation. The display provides a range of key information such as PTO speed, ground speed and working hours.
Tyre sets are available in various configurations and profiles, including smooth treads for lawn care duties.
The TRX 5800 is also available, on request, with a joystick or lifting with position and draft control.
On request, the machine can also be supplied with the Red Cab, with air conditioning and an ample choice of optionals, including features previously reserved for the higher power tractors in the Antonio Carraro range. The rear of the cab features two practical openings for implement hoses.
All that remains to do is to take a test drive… TRX will amaze you!
Antonio Carraro S.p.A. is directly committed to the continuous development and improvement of its website, with an in-house team in charge of graphics, content and coordination.
ANTONIO CARRARO SPA Via Caltana, 24 - 35011 CAMPODARSEGO PD - Italy
Iscritta nel registro delle Imprese di Padova in data 19.02.1996 REA 126503 del 26.02.1976
Capitale Sociale in EURO deliberato-sottoscritto-versato 2.157.265,55
Sistema di amministrazione e controllo - CONSIGLIO DI AMMINISTRAZIONE
AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip. [read]
RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction. MORE
The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.
Transmission - 16+16
Synchronized transmission gearbox with 32 speeds, 16 fwd +16 rev, and synchronized shuttle reverser; PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser and PTO selector; Electrohydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch.
Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).
EXG Extended Warranty
As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection. [read]
The soundproof cab offers also an automatically controlled air conditioning system.
