Features

SRX 7800
Power
70 HP
Engine
Yanmar 4 cyl. turbo 3.319 cc Common rail stage 3B
Transmission
16+16 w/ synchronized reverser
Weight (KG)
1960 (rollbar) - 2100 (cab)
Capacity (KG)
2100
SRX 9900
Power
85 HP
Engine
Kubota - 4 cyl - 16V - Turbo Stage 3B - Common Rail - EGR Injection with electronic control
Transmission
16+16 synchronized reverser
Weight (KG)
2230 (rollbar) – 2360 (Starlight cab)

SRX Ergit 100 - Isodiametric reversible articulated tractor


THE SUPER-SPECIALIZED
ARTICULATED TRACTOR

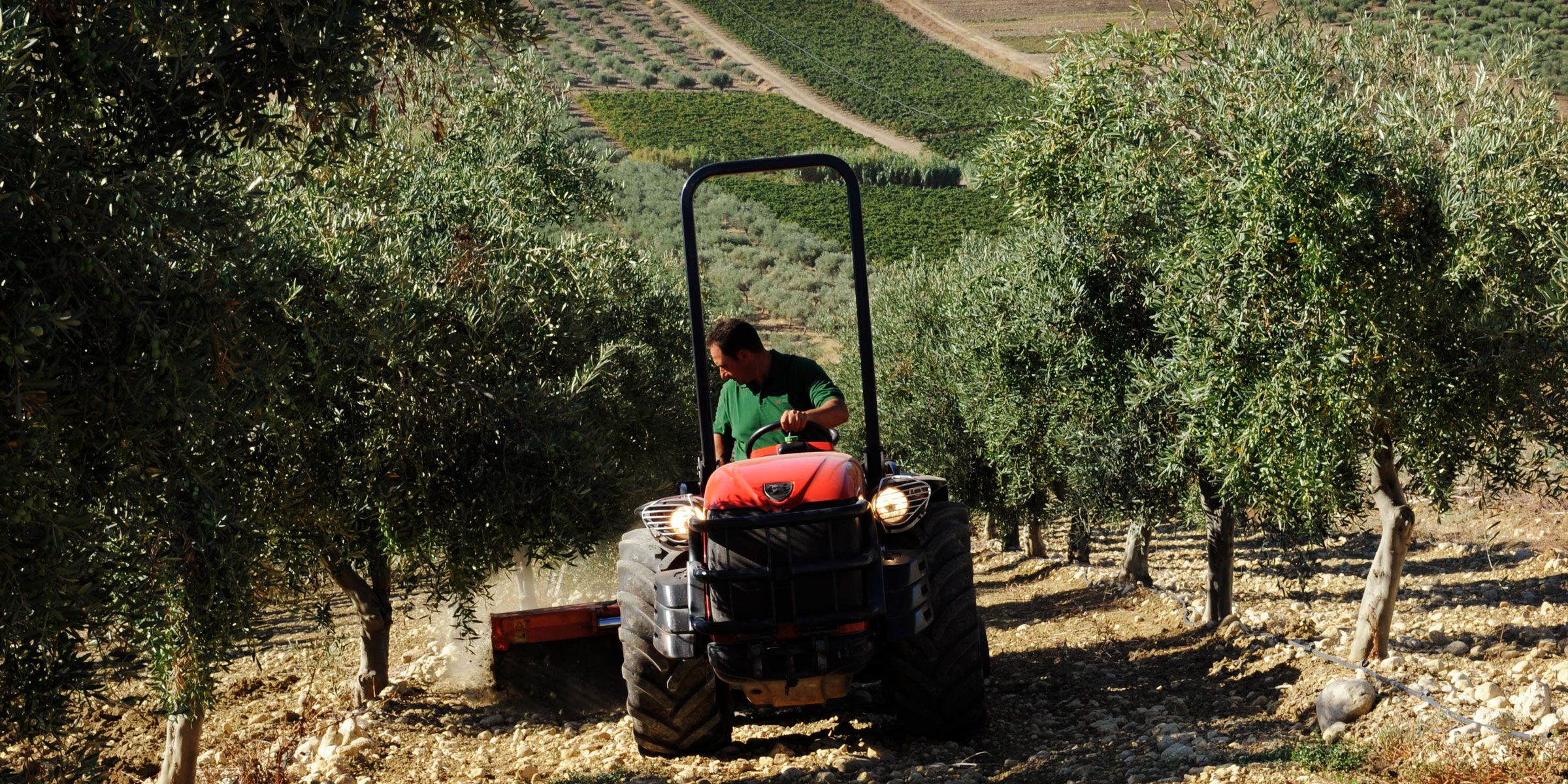

SRX is a superspecialised tractor which can work in cramped spaces, between rows of crops, in orchards, vineyards, nurseries, and on flat or sloping terrain. SRX is a reversible isodiametric tractor featuring an articulated chassis and peerless agility and handiness. Its low centre of gravity assures unmatched stability. Thanks to its finely-tuned engines and constant ground adherence, guaranteed by the projecting engine configuration and the 4-wheel drive, SRX enjoys a stable trim in all conditions. Its extraordinary versatility is determined by its reversible driving position: the vehicle can change position in order to use an extensive range of ploughing, pruning, treatment, harvesting, towing and material handling equipment. The ergonomic controls simplify work and eliminate operator fatigue and stress.
Two versions:
SRX
7800 - 70 hp;
SRX 9900 - 85hp - 4 cylinders turbo, 3769 cc, balance shafts with direct injection system and electronically governed EGR.

Plus

ACTIO™

RGS™

Articulated chassis

EXG Extended Warranty

Comfort

Transmission - 16+16

GRAMMER seat

Pneumatic seat

Headlight grilles

Bullbar

Vertical tie-rod and hydraulic thirdpoint

Superbrake

Starlight Cab

Front PTO

Joystick JPM™

Front lift

Air conditioner

Cabs

StarLight

CLOSED CAB

StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or underfoliage. StarLight's compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver's station grants acoustic comfort.
The main controls are in ergonomical position.
The ventilation system  features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. StarLight offers also two rear and two front lights – all adjustable. Two adjustable rearview mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.

RGS™

RGS™ Rev-Guide System, the AC reversible driving system on a rotating turret, inverts the driving direction in just a few seconds to allow efficient operation with towed or frontal equipment. The operator simply turns the seat/steering wheel/dash/pedal assembly through 180° for an identical, but reverse, driving direction. On tractors with Joystick*, all the auxiliary controls remain conveniently positioned. The RGS™ system is an integral part of the tractor’s multifunctional character, simplifying use and improving the precision and quality of performance.

e-DRIVE TRANSMISSION

MAXIMUM EASE OF DRIVING
The new transmission houses the e-DRIVE system complete with synchronizer assembly, servo controls and range shift and reverse shuttle control unit.

e-DRIVE RANGE SHIFTING*
The driver can shift through the speed ranges comfortably and without effort at the simple touch of a button.

e-DRIVE REVERSE SHUTTLE*
The e-DRIVE reverse shuttle with control lever under the steering wheel comes in handy for operations involving back and forth movements in rapid succession, such as loading and unloading of material with forklifts, loaders or snow blades. The driver is assisted by an electronic system, which enables him to operate the tractor under the safest conditions without ever taking his hands off the steering wheel.

*optional

Video Ergit 100

MADE IN ITALY
THE ERGIT 100 SERIES VIDEO
WATCH THE MOVIE

ACTIO™

AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
[read

RGS™

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
MORE

Articulated chassis

The wheelbase, the limited external width and the articulated frame make the tractor very agile between crop rows. The smooth and sensitive hydroguide steering wheel assures precise maneuvering on steep slopes, in crossways movements, in bottlenecks, among crop rows and in car parks.

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
[read]

Comfort

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.

Transmission - 16+16

Synchronized transmission gearbox with 32 speeds, 16 fwd +16 rev, and synchronized shuttle reverser; PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser and PTO selector; Electrohydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch.

GRAMMER seat

Air suspension with load display - reclining backrest - lumbar support.

Pneumatic seat

Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).

Headlight grilles

Protecting the light assemblies, they also make the bodywork look more appealing.

Bullbar

Tubular steel guard protecting the bodywork; integrates the third-point for the front lift.

Vertical tie-rod and hydraulic thirdpoint

Optimizes the positioning and inclination of the equipment.

Superbrake

More braking, more safety - Additional braking system, perfect for slope-parking. By activating the handbrake, with a subsequent pressure on the brake pedals all 4 oil disk brakes are blocked. The system works with the tractor engine both running or off.

Starlight Cab

StarLight is the Antonio Carraro closed cab mounted on Silent Blocks. With the large windows and portholes giving a view of the wheels and implement, it is very luminous and provides total visibility. It has opening front and rear windscreens, total-glass doors and double sunroof with sunscreens.
MORE

Front PTO

The front PTO (1000 rpm) with electro-hydraulic controls and progressive engagement with safety button is maintenance free.

Joystick JPM™

JPM™ Proportional Joystick - Available on demand electro-proportional hydraulic system controlled by joystick; 11 quick couplings; available also forcing pump for front hydraulic engine.

Front lift

Available on demand the front lifting system for the use frontal implements.

Air conditioner

The soundproof cab offers also an automatically controlled air conditioning system.
