TRX 9900
KUBOTA - 4 Cyl - 16V TURBO – 3769 CC
16+16 synchronized reverser
Weight (KG)
2100÷2200 rollbar – 2175÷2275 cab
Capacity (KG)

TRX 9900 - Isodiametric reversible steering tractor


TRX 9900 (85 hp)
is a fast, slender, isodiametric reversible tractor suitable for several tasks. Its great stability and constant grip – given by the ACTIO™ Full Chassis with Oscillation – allow the operator to use contemporarily very demanding devices in both front and rear sides. TRX is available with roll-bar or by request with EasyStar 6-uprights Safety Frame or StarLight Cab.



AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.


RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.

Steering wheels

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.


Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.

Transmission - 16+16

Synchronized transmission gearbox with 32 speeds, 16 fwd +16 rev, and synchronized shuttle reverser; PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser and PTO selector; Electrohydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch.

Pneumatic seat

Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).


A windscreen is available for the open cab.

Headlight grilles

Protecting the light assemblies, they also make the bodywork look more appealing.


Tubular steel guard protecting the bodywork; integrates the third-point for the front lift.

Vertical tie-rod and hydraulic thirdpoint

Optimizes the positioning and inclination of the equipment.

Starlight Cab

StarLight is the Antonio Carraro closed cab mounted on Silent Blocks. With the large windows and portholes giving a view of the wheels and implement, it is very luminous and provides total visibility. It has opening front and rear windscreens, total-glass doors and double sunroof with sunscreens.

Easystar Cab

EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust. Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.

Joystick - TRX

Available on demand several hydraulic settings controlled by on-off joystick (electro-proportional available on TRX 10900) ; draft and position control available; hydraulic suspension available on TRX 7800 S and TRX 9900.

Front lift

Available on demand the front lifting system for the use frontal implements.

Air conditioner

The soundproof cab offers also an automatically controlled air conditioning system.




StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or underfoliage. StarLight's compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver's station grants acoustic comfort.
The main controls are in ergonomical position.
The ventilation system  features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. StarLight offers also two rear and two front lights – all adjustable. Two adjustable rearview mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.


EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust.
Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.
Covered by Antonio Carraro warranty, EasyStar is safer than many untested, uncertified products at the same cost.
In addition to its unmatched quality, its design is pleasant and perfectly suitable to the chosen tractor.

STEERING: precise and tight

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering brakes can be utilized, while accentuating the “superbend” effect obtained thanks to the double-acting constant velocity joints. The front wheel on the inside of the curve naturally increases the steering angle without the vehicle being allowed to stick. The smooth and sensitive hydroguide steering wheel assures precise maneuvering on steep slopes, in crossways movements, in narrow paths, among crop rows and in car parks.

SAFETY: active and passive

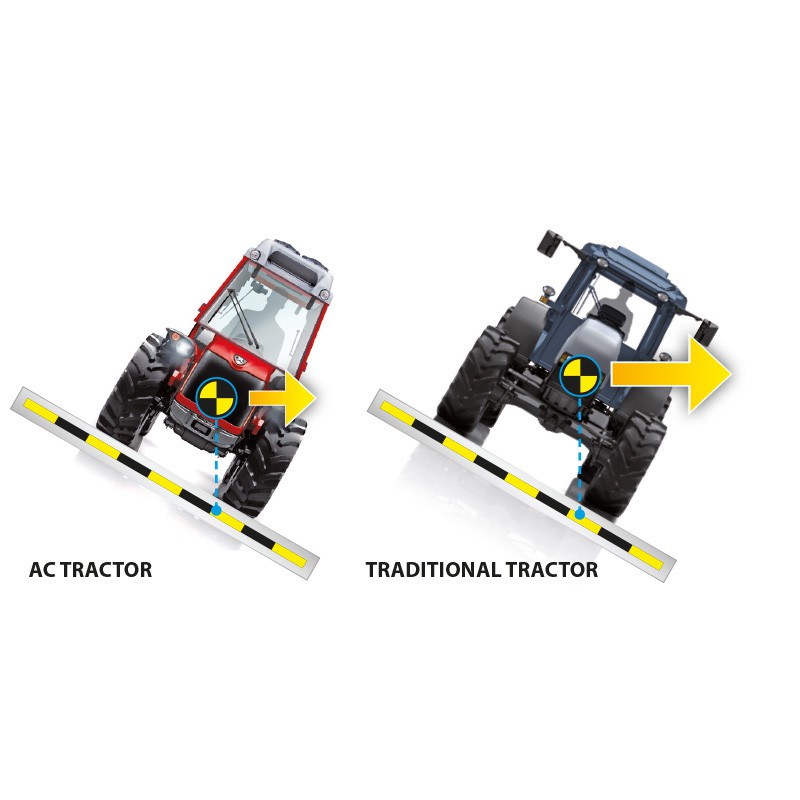

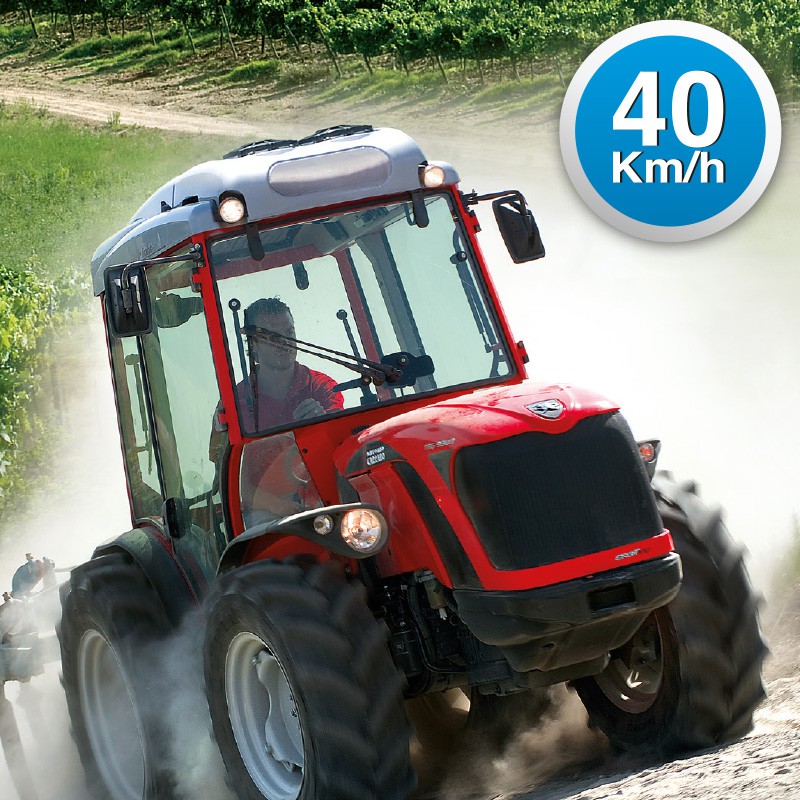

Low center of gravity, constant grip, stability, efficient brakes and driving position protection are just some of the "active" safety factors, which function in association with the "passive" features such as quality of components, design and the use of environment-friendly engines. The brake system, comprising 4 adjustment-free hydraulically operated oil-bath disc brakes, guarantees modularity during the sharpest braking and reliability even with the front-wheel drive disengaged. This system's safety level has allowed the vehicle to achieve type-approval for 40 km/h travel. The rear hydraulic lift enhances the tractor's grip, keeping it "glued to the ground" at all times: the machine and implement adapt perfectly to the contours of the land with no slewing or side-slipping, ensuring peak efficiency. The electrohydraulic differential lock, rear or simultaneous on both axles, prevents wheel slip, maintaining traction at all times. The driving position in the center of the vehicle, with roll-bar or cab type-approved to withstand even violent impact loads, guarantees the operator unbeatable protection.
In order to view youtube videos you must accept the cookie policy


The tapered and racy design helps the tractor to maneuver in fields and increases operator visibility of the equipment and the surrounding terrain. The spacious driving position is easy to access and protects the operator. The operating station is suspended on silent-block, which absorb vibrations and dampen noise.

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.

The lighting equipment, integrated into the mudguards, is comprised of reflecting parabolic optical assemblies, which offer a wide range of illumination covering the roadway, the equipment, and the surrounding field. The adjustable* steering wheel allows any operator to find his ideal driving position. Maintenance is practical and fast thanks to the fact that the bonnet can be fully opened and the side panels and battery cover can be easily removed.

MACHINE AND EQUIPMENT: an integrated technological system

The integrated lifting - hydraulic system - PTO assembly can mount a large variety of implements at both the front and rear. The lift is a single group with vertical cylinders, featuring a 3-point hitch. The rear lift controls the equipment precisely and optimizes the stability of the tractor allowing it to follow the contour of the terrain without slipping or sliding sideways.

The front lift* optimizes combined processes such as a front grass shredder with a rear between-row mower, a front vine trimmer with a rear side-shoot remover, a front vine trimmer with a rear mulcher, or a front snow blade with a rear salt/sand spreader.

The multi-plate clutch in oil bath of the PTO with an electro-hydraulic progressive engagement command features a safety button for preventing involuntary starting and stopping the engine with the PTO engaged.
