Closed steel metallic cab, fitted on Silent-Block, suitable for vineyards and orchards.

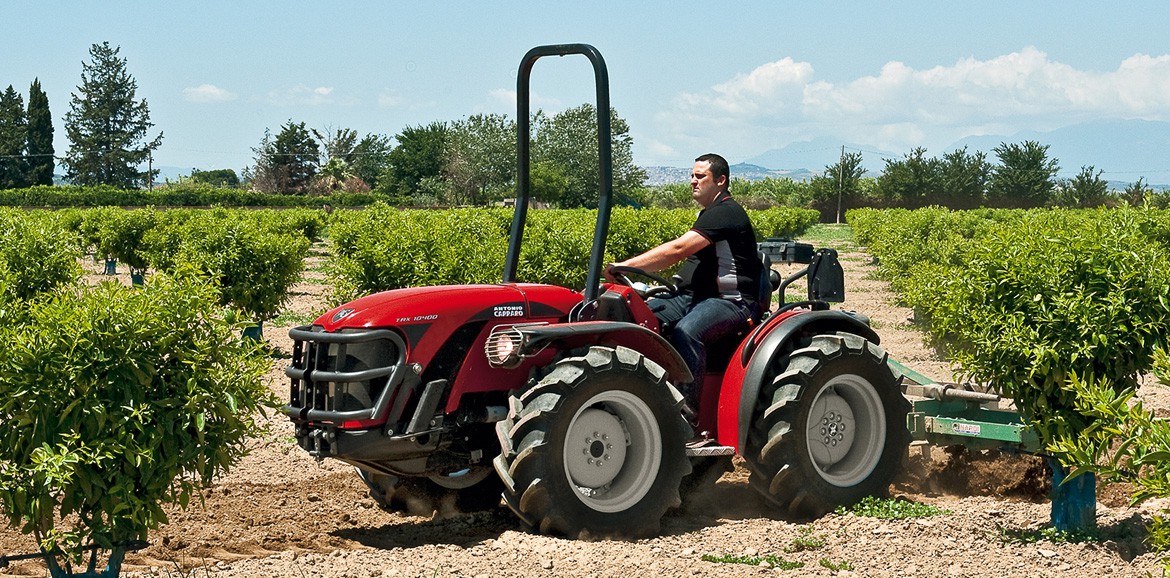

"Taylor-Made" for your activity

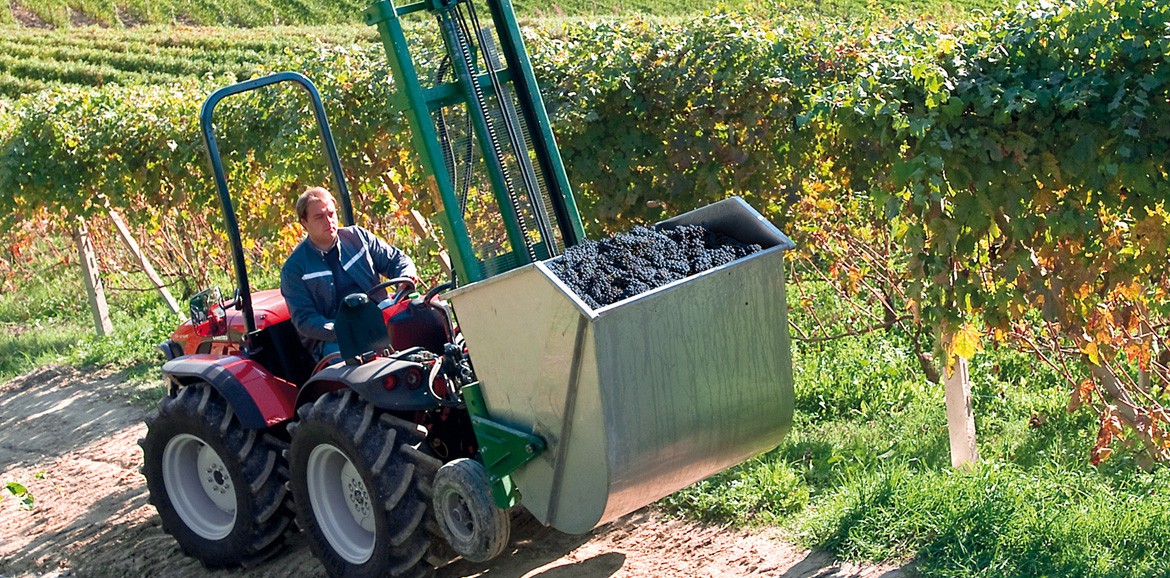

Extraordinary versatility achieved by the reversible driving position.
Several opetions for the setup customization.
ACTIO™ - Full Chassis with Oscillation
- Low center of gravity and 4-wheel drive;
- Short wheelbase and reduced turning radius;
- Equal weight distribution.

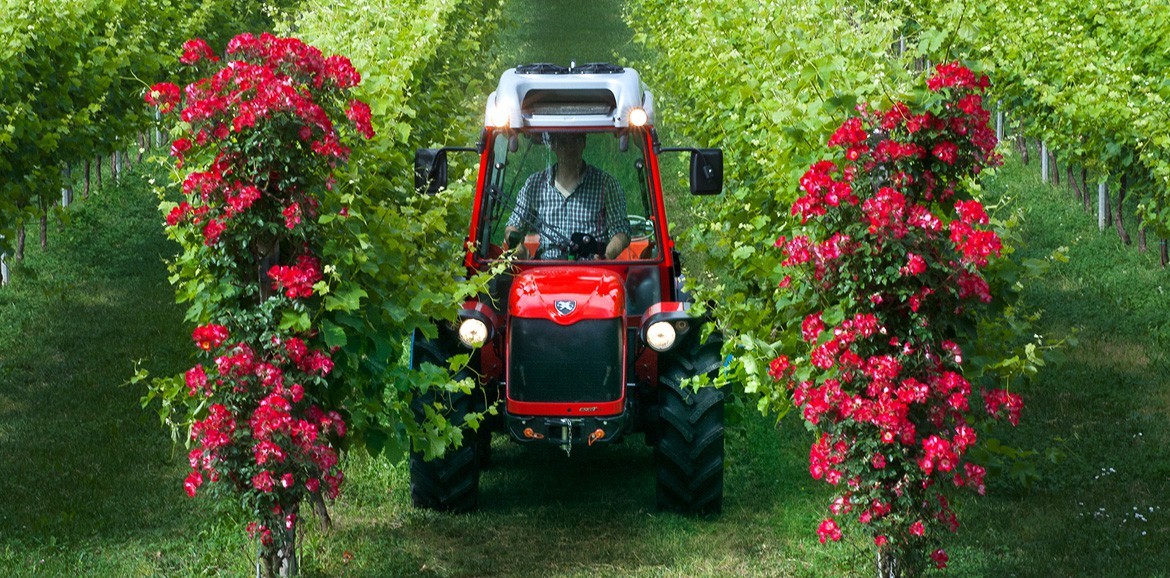

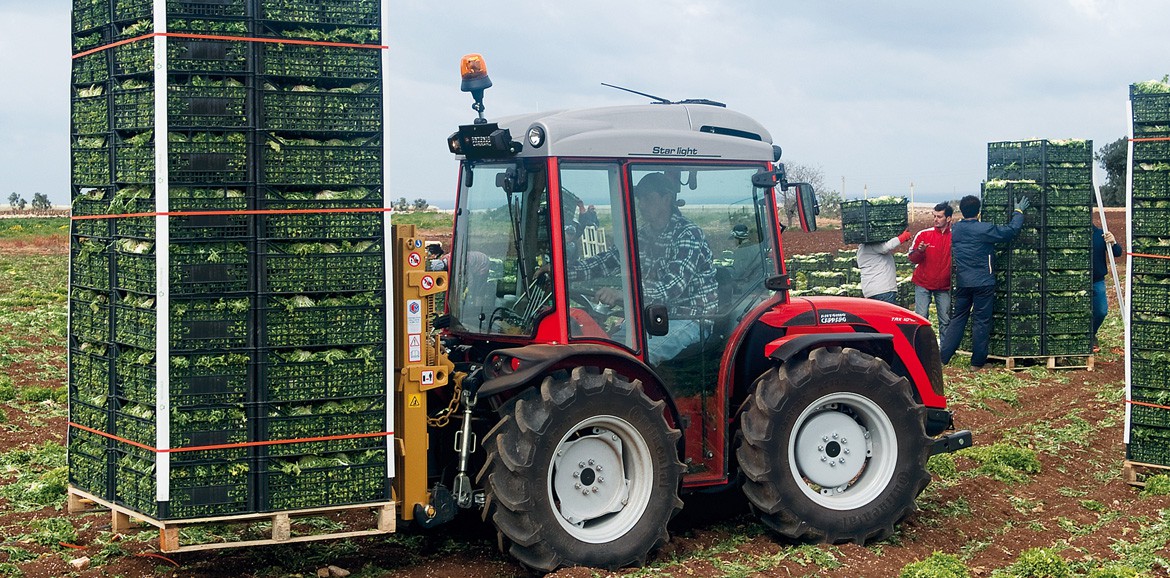

A new tractor concept
Antonio Carraro SPA produces specialized tractors for professionals wishing to experience the emotion of owning something unique and precious that is guaranteed by a one-hundred year old brand at the cutting-edge of “Italian Style”.
TRX, hızlı, çevik, yüksek çekiş gücü sağlayan, büyük eş çaplı tekerleklere sahip çift yönde sürüşlü bir traktördür. ACTIO™ Salınımlı Tam Şasi, zorlayıcı itmeli ve/veya çekmeli aletlerin aynı anda dahi kullanımına imkan tanıyarak, dayanıklılık ve toprak üzerinde sağlam bir yol tutuşunu garanti eder. TRX 9900'in motoru (85 hp, 4 turbo silindirli, 3769 cc), enjeksiyon sistemli ve ters dönüşlüdür ve elektronik kontrollü EGR'ye sahiptir.
Vertical tie-rod and hydraulic thirdpoint
Joystick - TRX

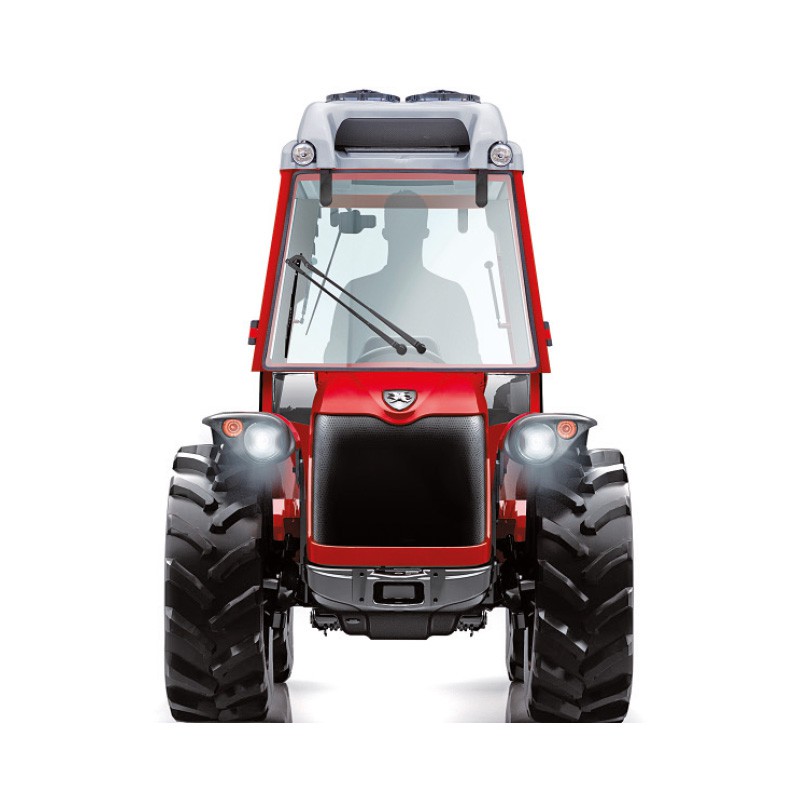

Kabin “Starlight”: gözle görünür biçimde ileri seviyede
Mükemmel tasarımı sayesinde, "StarLight" çiçekli ve meyveli bitkilere zarar vermeden en dar sıralara girer. Kabin içindeki yaşanabilir hacim alanı, hem ileri hem geriye doğru sürüşte kolaylık sağlar.Tüm yüzeylerde,tamamen şeffaf ve böylelikle tam bir görüş olanağı sağlayan kapılar mevcuttur. Arka panoramik tavan güneş perdesi ile donatılmıştır.Ön tavan yük taşıma aracı ve yükleme küreği gibi aletler ile çalışmalar için vazgeçilmez olan tam bir görüşe imkan verir. Kabin içindeki sessizlik, son nesil akustik yalıtım materyali ile üretilmiş kaplama sayesinde mükemmeldir. Dışbükey ve köşesiz karoseri (hidrolik çıkışlar dahi kabin ve çamurluk gövdelerine montaj yapılmıştır) Ayrıca aşağıdaki özellikleri içerir; Her iki tarafta yardımcı kumandalar, hoparlörler ile cd çalar yuvası, çıkarılabilir plaka yuvası ve ayarlanabilir dikiz aynaları. "StarLight" tavanı, temizlik ve bakım müdahaleleri için elektrofan grubunu kaldırmak ve rahatça alet kullanmaksızın çalışmak için bir mazgal ile donatılmıştır. Starlight kabinlerin olağanüstü konforu modern operatörlerin hayat tarzında yeni bir ufuk açar.
MULTI-PURPOSE MODULAR FRAME EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust.
Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.
Covered by Antonio Carraro warranty, EasyStar is safer than many untested, uncertified products at the same cost.
In addition to its unmatched quality, its design is pleasant and perfectly suitable to the chosen tractor.
STEERING: precise and tight

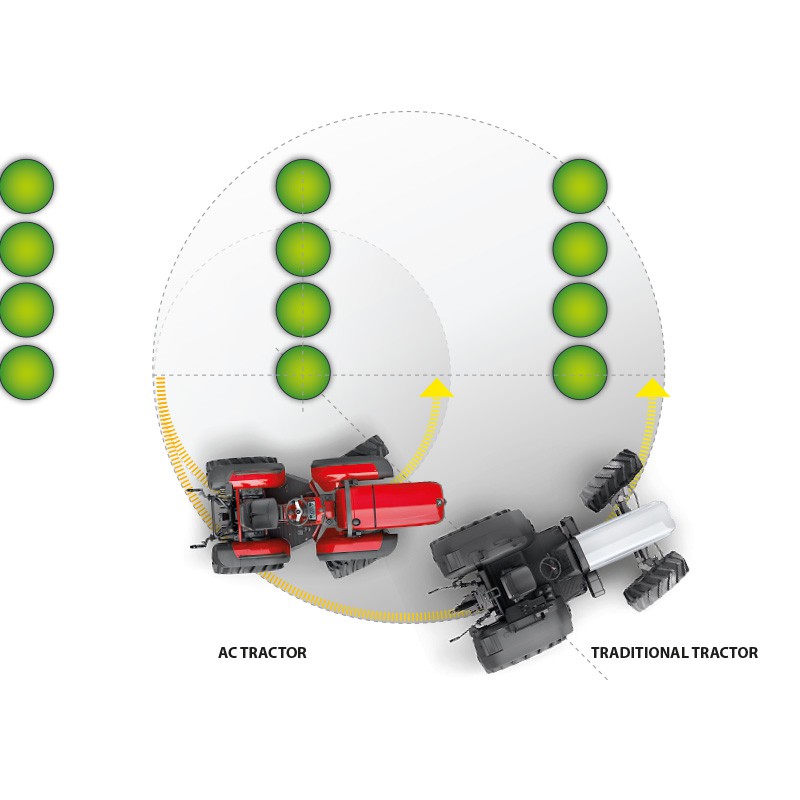

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering brakes can be utilized, while accentuating the “superbend” effect obtained thanks to the double-acting constant velocity joints. The front wheel on the inside of the curve naturally increases the steering angle without the vehicle being allowed to stick. The smooth and sensitive hydroguide steering wheel assures precise maneuvering on steep slopes, in crossways movements, in narrow paths, among crop rows and in car parks.
SAFETY: active and passive

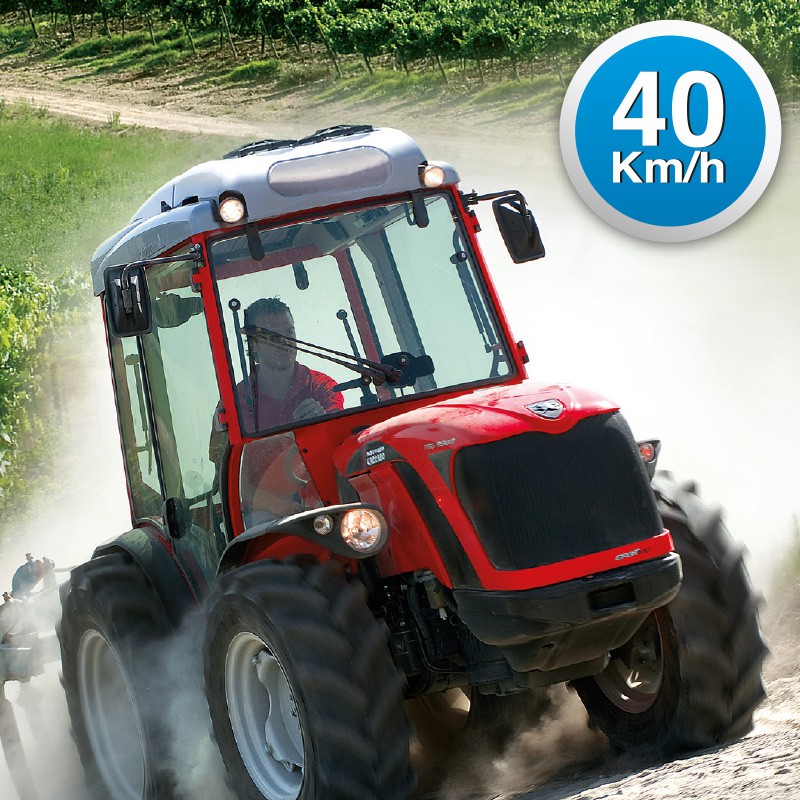

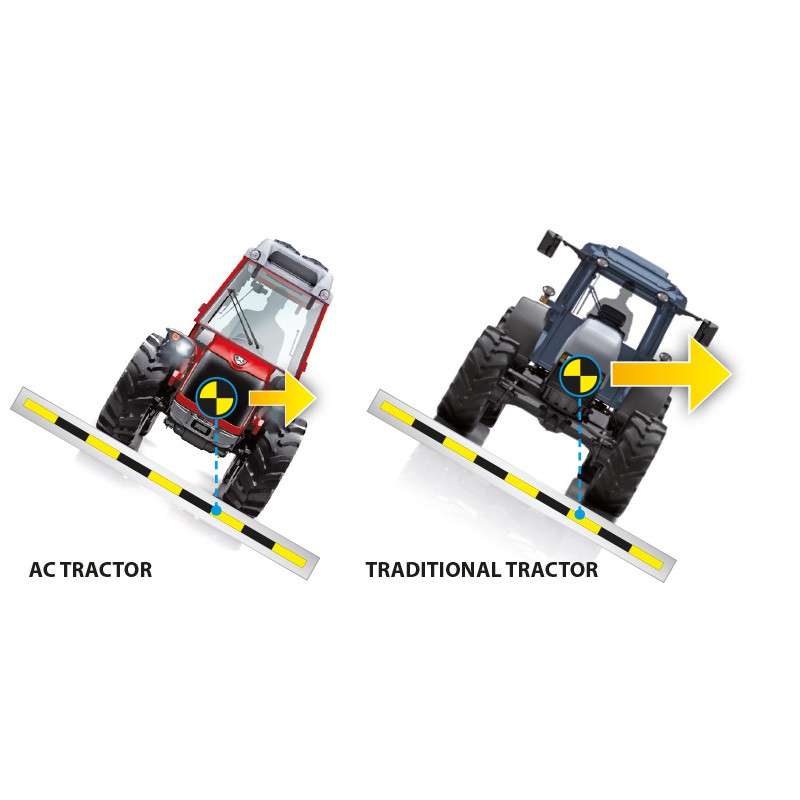

Low center of gravity, constant grip, stability, efficient brakes and driving position protection are just some of the "active" safety factors, which function in association with the "passive" features such as quality of components, design and the use of environment-friendly engines. The brake system, comprising 4 adjustment-free hydraulically operated oil-bath disc brakes, guarantees modularity during the sharpest braking and reliability even with the front-wheel drive disengaged. This system's safety level has allowed the vehicle to achieve type-approval for 40 km/h travel. The rear hydraulic lift enhances the tractor's grip, keeping it "glued to the ground" at all times: the machine and implement adapt perfectly to the contours of the land with no slewing or side-slipping, ensuring peak efficiency. The electrohydraulic differential lock, rear or simultaneous on both axles, prevents wheel slip, maintaining traction at all times. The driving position in the center of the vehicle, with roll-bar or cab type-approved to withstand even violent impact loads, guarantees the operator unbeatable protection.
In order to view youtube videos you must accept the Marketing cookies
The tapered and racy design helps the tractor to maneuver in fields and increases operator visibility of the equipment and the surrounding terrain. The spacious driving position is easy to access and protects the operator. The operating station is suspended on silent-block, which absorb vibrations and dampen noise.

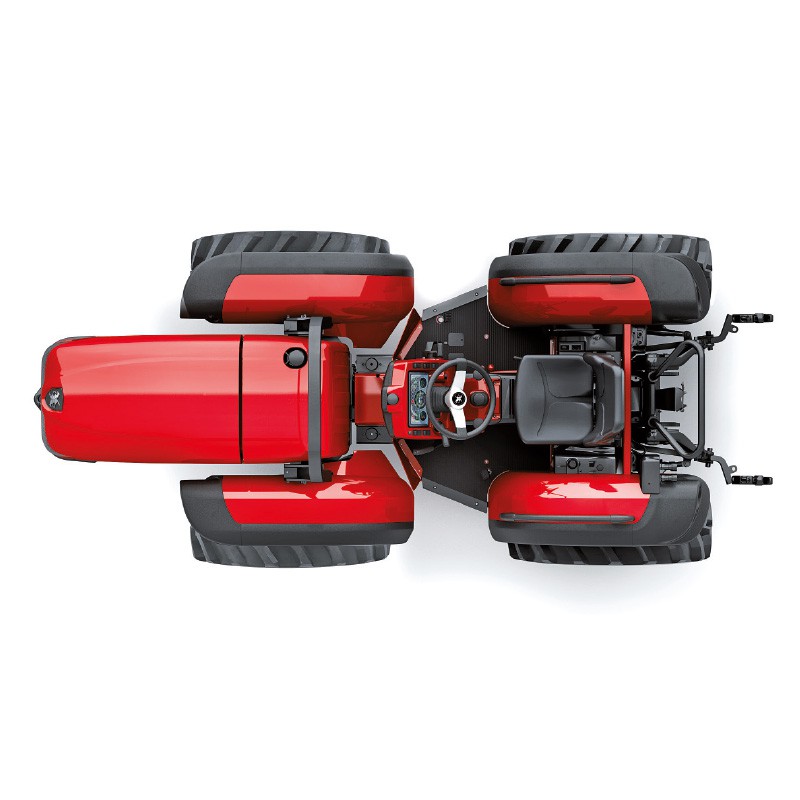

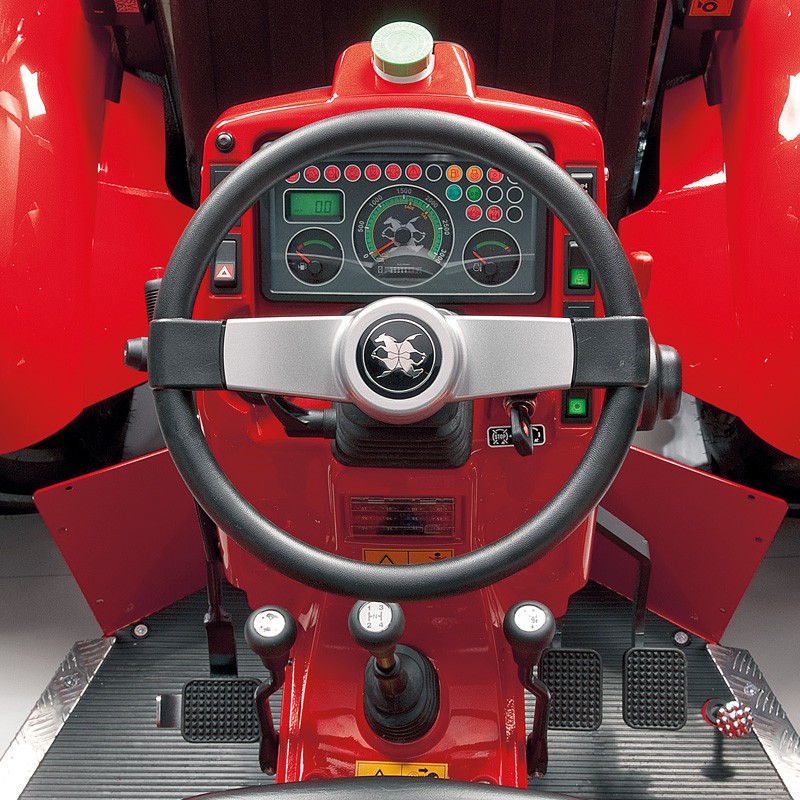

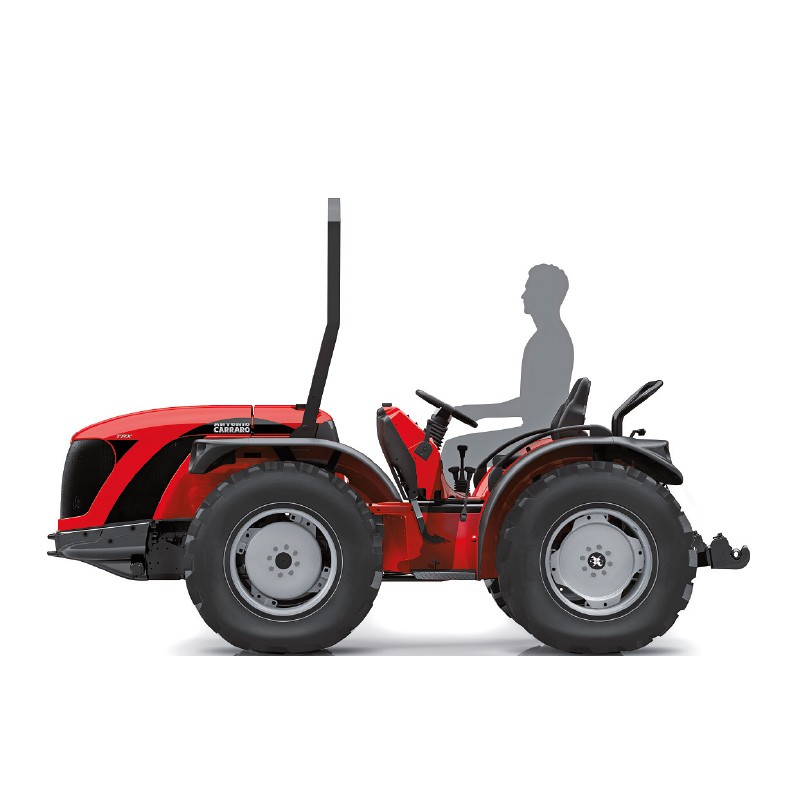

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.

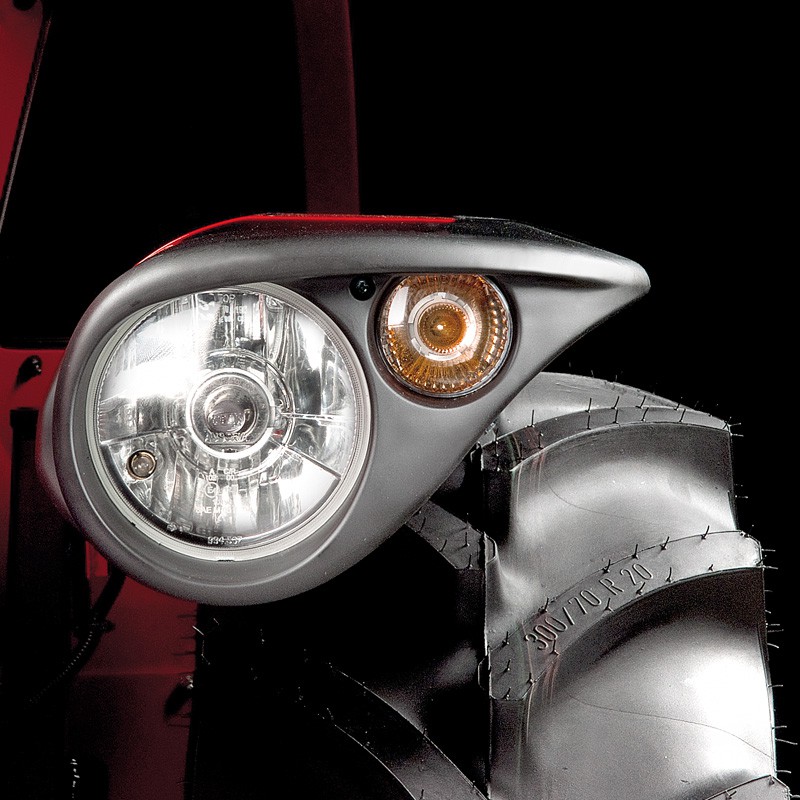

The lighting equipment, integrated into the mudguards, is comprised of reflecting parabolic optical assemblies, which offer a wide range of illumination covering the roadway, the equipment, and the surrounding field. The adjustable* steering wheel allows any operator to find his ideal driving position. Maintenance is practical and fast thanks to the fact that the bonnet can be fully opened and the side panels and battery cover can be easily removed.
MACHINE AND EQUIPMENT: an integrated technological system

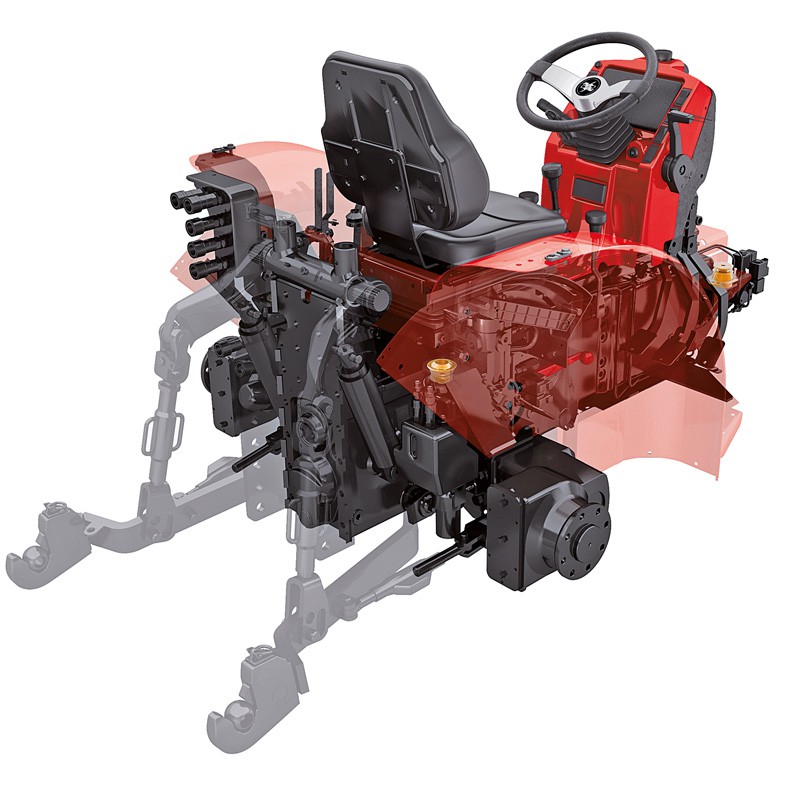

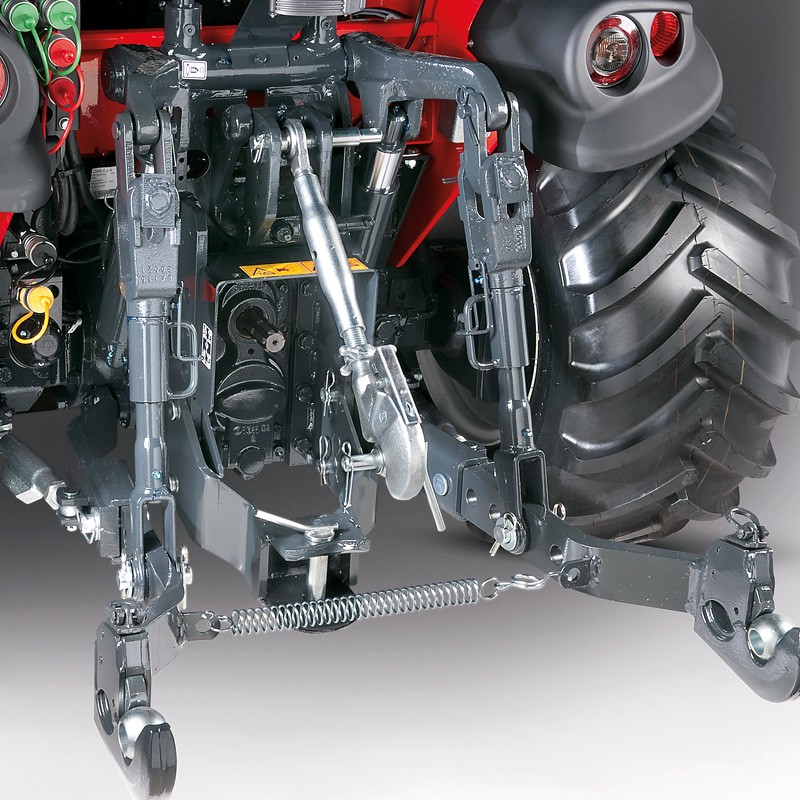

The integrated lifting - hydraulic system - PTO assembly can mount a large variety of implements at both the front and rear. The lift is a single group with vertical cylinders, featuring a 3-point hitch. The rear lift controls the equipment precisely and optimizes the stability of the tractor allowing it to follow the contour of the terrain without slipping or sliding sideways.

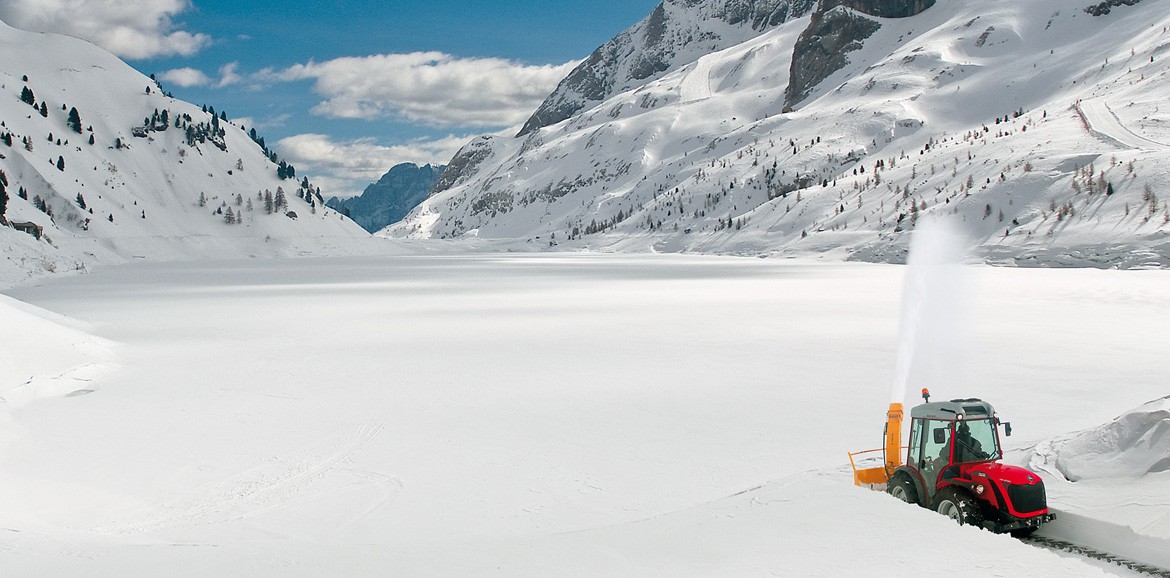

The front lift* optimizes combined processes such as a front grass shredder with a rear between-row mower, a front vine trimmer with a rear side-shoot remover, a front vine trimmer with a rear mulcher, or a front snow blade with a rear salt/sand spreader.
The multi-plate clutch in oil bath of the PTO with an electro-hydraulic progressive engagement command features a safety button for preventing involuntary starting and stopping the engine with the PTO engaged.
Antonio Carraro S.p.A. is directly committed to the continuous development and improvement of its website, with an in-house team in charge of graphics, content and coordination.
ANTONIO CARRARO SPA Via Caltana, 24 - 35011 CAMPODARSEGO PD - Italy
Iscritta nel registro delle Imprese di Padova in data 19.02.1996 REA 126503 del 26.02.1976
Capitale Sociale in EURO deliberato-sottoscritto-versato 2.157.265,55
Sistema di amministrazione e controllo - CONSIGLIO DI AMMINISTRAZIONE
AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction. MORE

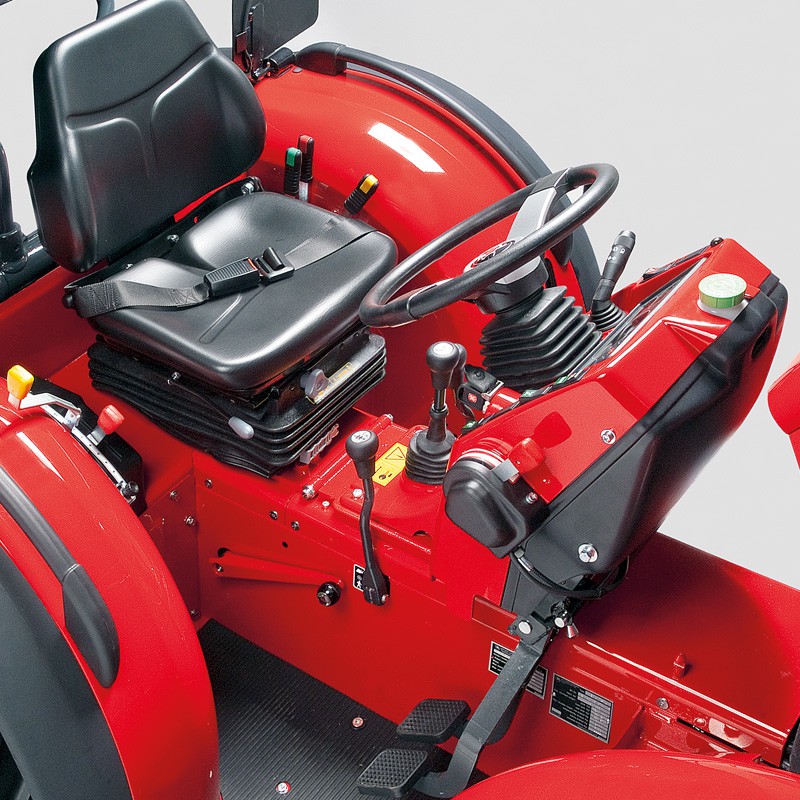

Sit down. That's when you will see the difference between Antonio Carraro and any other tractor. Antonio Carraro tractors are all designed with special regard for the operator, continuously aiming for the greatest comfort. A wide, ergonomic, cozy seat; a comfortable, easily accessible driving position; controls always at hand. Once you try the Antonio Carraro driver's seat, you will never wanna seat on another tractor.
Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).
As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
Protecting the light assemblies, they also make the bodywork look more appealing.
Tubular steel guard protecting the bodywork; integrates the third-point for the front lift.
Vertical tie-rod and hydraulic thirdpoint
Optimizes the positioning and inclination of the equipment.

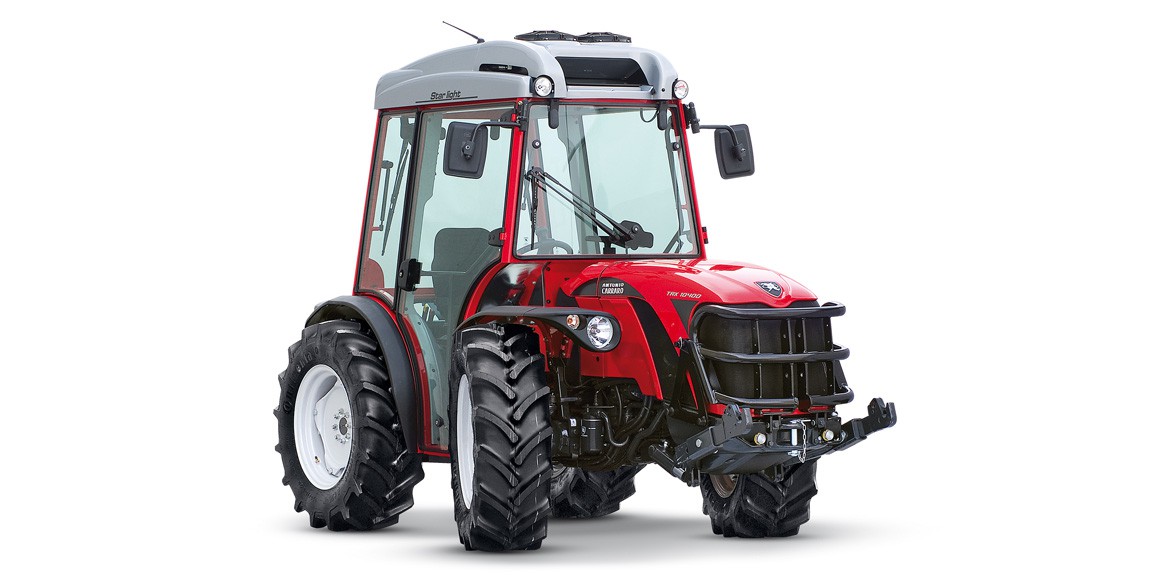

StarLight is the Antonio Carraro closed cab mounted on Silent Blocks. With the large windows and portholes giving a view of the wheels and implement, it is very luminous and provides total visibility. It has opening front and rear windscreens, total-glass doors and double sunroof with sunscreens. MORE
EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust. Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.
Available with ballasts for front and rear wheels.
Joystick - TRX
Available on demand several hydraulic settings controlled by on-off joystick (electro-proportional available on TRX 10900) ; draft and position control available; hydraulic suspension available on TRX 7800 S and TRX 9900.
Available on demand the front lifting system for the use frontal implements.
The soundproof cab offers also an automatically controlled air conditioning system.
