Features

TTR 3800 HST
Power
25,7 HP
Engine
YANMAR cylinders: 3 | STAGE V
Transmission
HYDROSTATIC TRANSMISSION
Weight (KG)
rollbar 1150÷1200 kg
Capacity (KG)
910

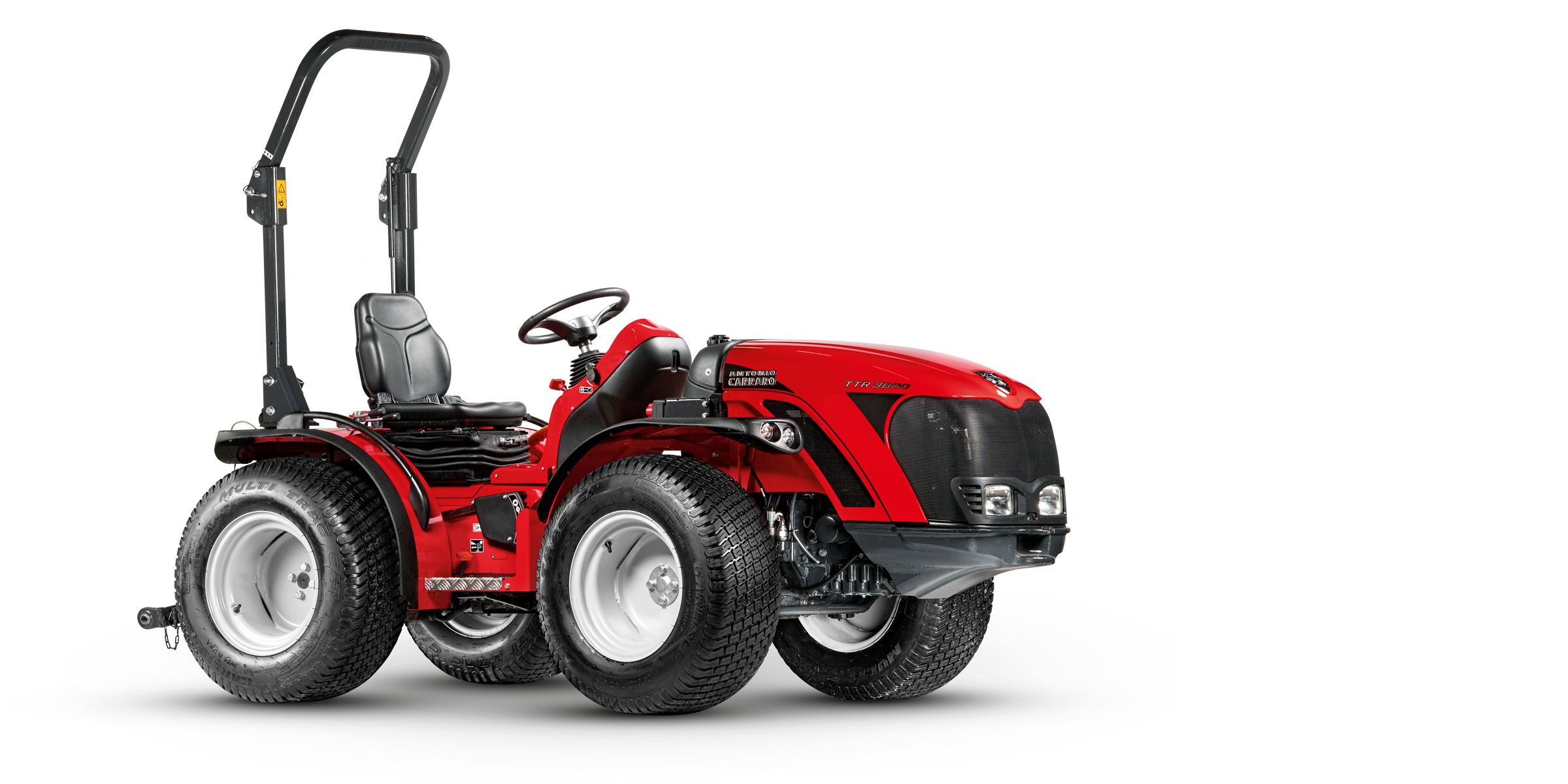

TTR 3800 HST II - Hydrostatic multipurpose universal tractor with reverse drive

PRECISE, COMPACT, MULTI-FUNCTIONAL
The TTR 3800 HST ) brings the benefits of hydrostatic transmission to a medium power tractor.
It is a multipurpose universal tractor with precise steering, extremely compact dimensions and reverse drive that can be used in vast range of applications. For maintenance of green areas, grass cutting, maintenance of roads and urban areas, the TTR universal tractor is the ideal choice. Equipped with farm tires, it is fantastic all-rounder, suitable for all types of tasks using all types of implement. It is the quintessential multipurpose tractor.
With the integral ACTIO™ oscillating frame and isodiametric wheels, it is capable of precision work on any type of terrain: flat or slope, even or rough. The low ground pressure of the tires (0.5 kg/cm2) allows the TTR to be used on soft or even rain-soaked ground with soil damage. It can also be fitted with turf tires with wide treads to make it ideal for lawn maintenance.

The 3-cylinder Yanmar engine with direct injection is quiet, environmentally friendly and economical to run.
The Speed Fix function allows the operator to set the travel speed as required.

The TTR 3800 HST can be equipped with an on-off joystick for control of the implements, front lift and front PTO, rear lift with double-acting cylinders.
Several electrical and hydraulic options are available to enhance operator comfort.

Plus

Antonio Carraro | Plus | ACTIO

ACTIO™

RGS™

Antonio Carraro | steering tractors

Steering wheels

Antonio Carraro | Plus | Hydrostatic transmission TTR SP HST

Hydrostatic transmission

Antonio Carraro | Comfort | Driver's seat

Comfort

Antonio Carraro | Plus | Grammer seat with pneumatic suspension

GRAMMER seat

Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

Short lifting arms

Wheels ballasts

Antonio Carraro | Options | Joystick TTR hydraulic system control

Joystick - TTR 4400

Antonio Carraro | Options | Froltlift

Front lift

Antonio Carraro | Options | Tyres

Wheels

MAINTENANCE OF GREEN AREAS

Grass cutting and collection

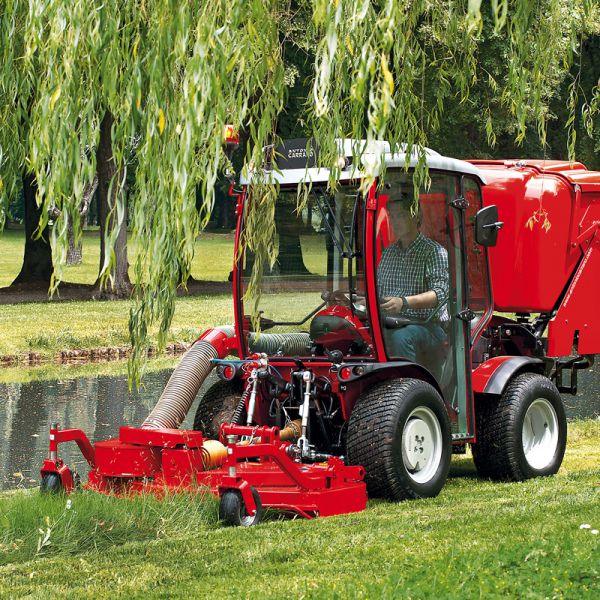

The RT 1500 HDS* is a professional turbine rotary mower equipped with an innovative system that allows the cutting height to be adjusted in a simple, intuitive manner. The powerful suction turbine fitted onto the deck in mid-centre position ensures efficient collection of the grass clippings without clogging. The turbine features six curved vanes arranged in such a way as to ensure a fluid, clog-free flow of the cut material, including wet grass. The three rotary cutter blades are arranged in a triangular fashion under the deck providing a uniform and precise cut. Featuring a compact design and a smooth and clean shape, the mower has a cutting width of 150 cm and enables working close to kerbs and pavements. A pressure gauge allows the operator to monitor the turbine operation by constantly checking the suction efficiency and the grass level within the collector. The RT 1500 HDS can be placed in vertical position without the need to remove the cardan joint. This operation can be easily performed by only one operator.

*optional


CT 1000

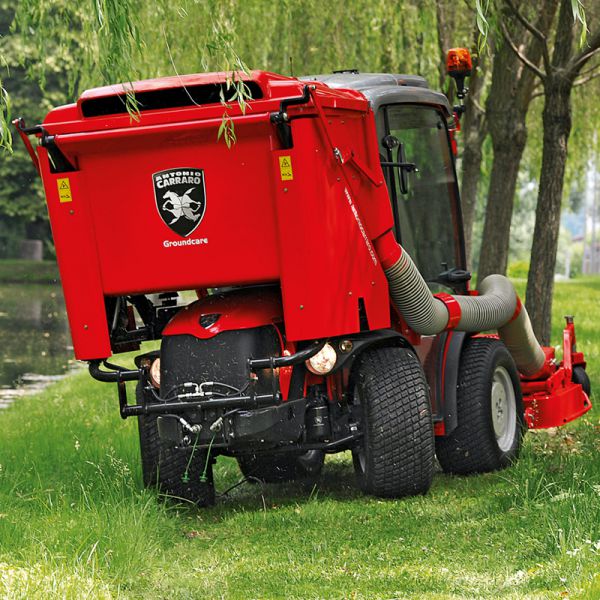

The patented CT 1000* collector has a capacity of up to 1000 litres ensuring a long operating time. This exceptional holding capacity is due to the optimal weight distribution on the ACTIOTM chassis, resulting in outstanding balance and stability. Made from shock-proof and corrosion-resistant fiberglass, the collector has a compact, rounded design that allows the machine to manoeuver easily even in the most cramped spaces. The cut grass is easily discharged by simply activating the remote valve lever (or the joystick controller), after pointing the discharge opening in the desired direction at a maximum height of 2.15 m.  This operation may only be carried out with the machine at a standstill. The CT 1000 collector can be fitted and removed with ease by simply screwing/unscrewing the four fixing screws.

*optional
Antonio Carraro | Plus | ACTIO

ACTIO™

AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
MORE

RGS™

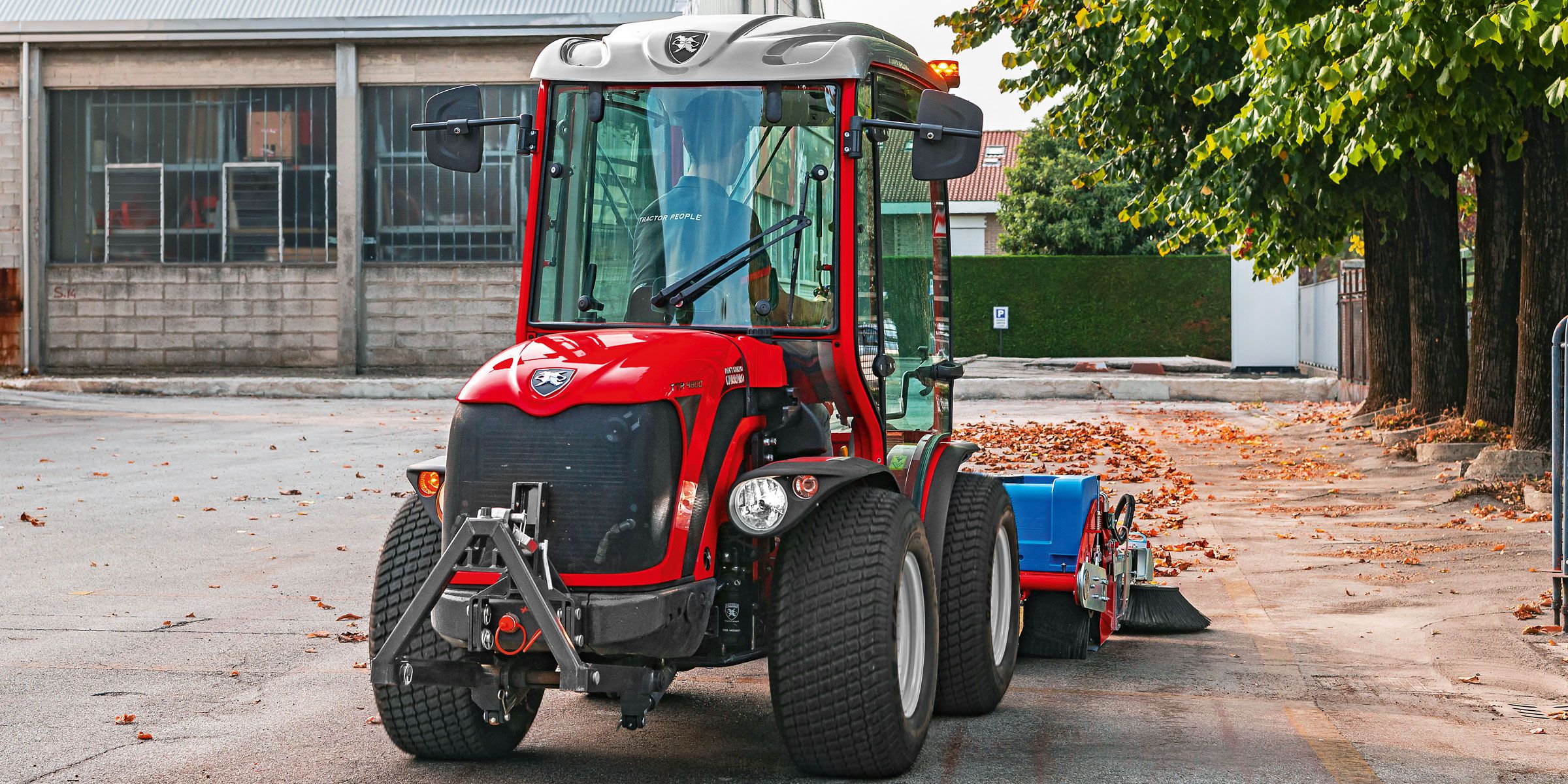

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
MORE
Antonio Carraro | steering tractors

Steering wheels

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.

*optional
Antonio Carraro | Plus | Hydrostatic transmission TTR SP HST

Hydrostatic transmission

Hydrostatic transmission with hydraulic control; Mechanical selector with 3 speed range: low/normal/high; Continuous speed variator in both forward and reverse from 0-6, 0-12, 0-28 km/h; Independent PTO with 2 speed: 540 and 1000 rpm; Front and rear differential lock; Disengaging drive wheels on rear axle; Speed-fix control.
Antonio Carraro | Comfort | Driver's seat

Comfort

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.
Antonio Carraro | Plus | Grammer seat with pneumatic suspension

GRAMMER seat

Air suspension with load display - reclining backrest - lumbar support.

Optional
Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
[read]

Short lifting arms

Available on demand also with short-bended 3-point lifting arms.

Wheels ballasts

Available with ballasts for front and rear wheels.
Antonio Carraro | Options | Joystick TTR hydraulic system control

Joystick - TTR 4400

Available on demand two different hydraulic systems controlled by joystick, with possibility up to 8 quick couplings.
Antonio Carraro | Options | Froltlift

Front lift

Available on demand the front lifting system for the use frontal implements.

Optional
Antonio Carraro | Options | Tyres

Wheels

Available several sets of tyres suitable to every kind of ground, for a constant grip and a thrilling performance regardless of the soil conditions.
