SRX 10900 R
Power
98 HP
Engine
Kubota - 4 cyl - 16V - Turbo Stage 3B - Common Rail - EGR Injection with electronic control
Transmission
16+16 synchronized reverser
Weight (KG)
2125 (rollbar) 2260 (Air cab)
Capacity (KG)
2400

SRX Ergit R

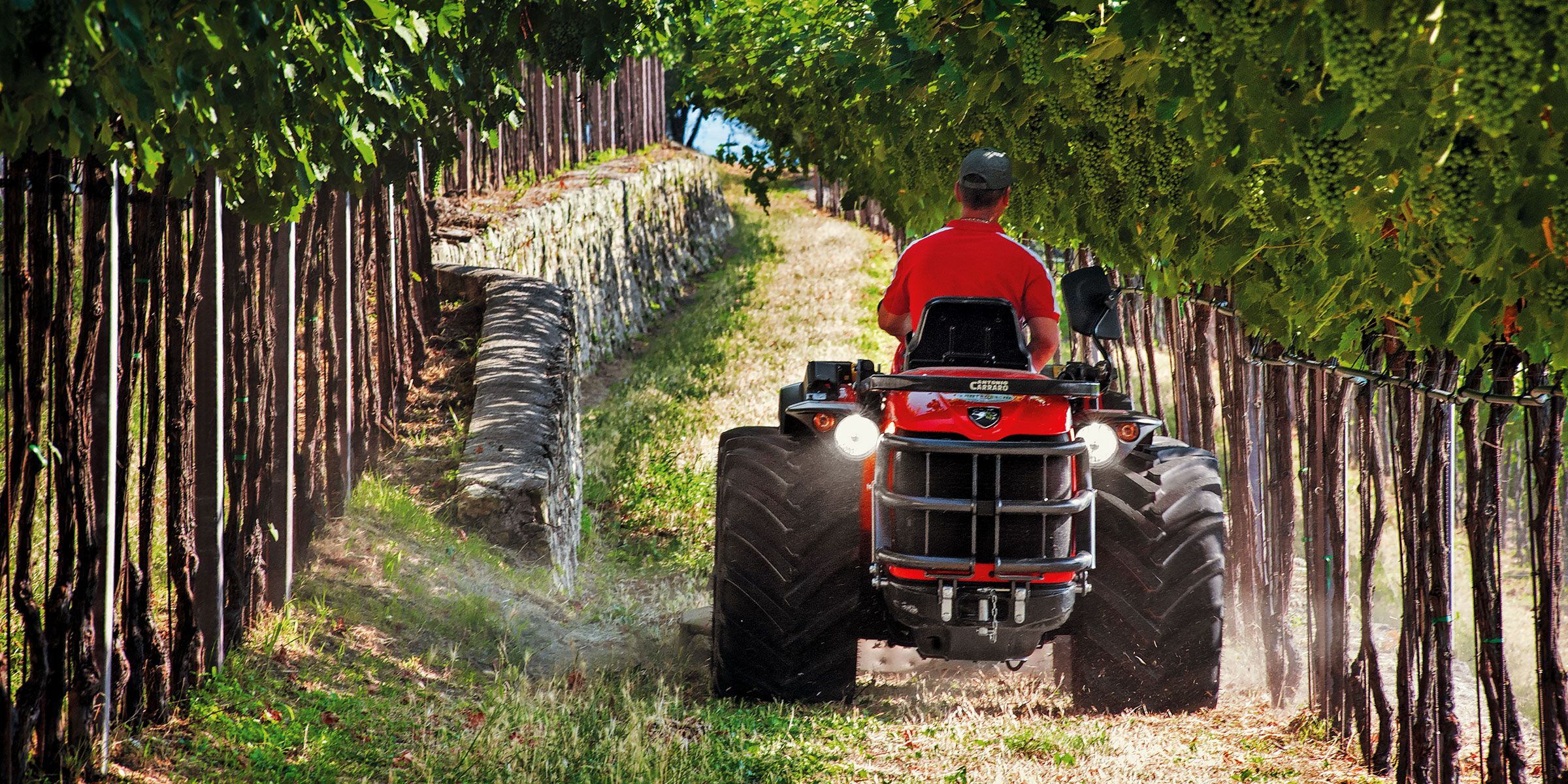

With a 98 hp Kubota engine, this isodiametric tractor with reverse drive and an articulated frame is the latest addition to a long line of Antonio Carraro articulated tractors with reversible driving position, which benefits from a range of innovative features, including a new joystick, a new control panel and improved ergonomics, to deliver a unique working experience.
It is ideally suited to working in tight spaces and between narrow rows (orchards, vineyards, nurseries), where it shows its agility and excellent handling characteristics. The low center of gravity ensures stability and plenty of grip, even over rough ground and on slopes. The reverse drive function enhances operational versatility, enabling the use of specific implements for ploughing, pruning, spraying, towing and materials handling.
The transmission features a synchronized 16 + 16 gearbox (with optional E-drive). The synchronized reversing shuttle can be operated on the move.

The SRX 10900 R orchards and vineyards tractor can be equipped with the latest generation Air pressurized cab, also available in a Category 4 certified version (guaranteed protection of the operator against inhalation of harmful dust, aerosols and vapors).


The R Series represents the top of the AC range for performance, technological content and on-board equipment, offering a host of useful functions as standard.
Thanks to CAN-bus technology, which allows instantaneous dialogue between the tractor's various electronic control units with a minimum number of connections, the operator can enjoy the benefits of electronic engine control, with all the controls conveniently located on the instrument panel, including the work speed memories and acceleration ramps. All the models are equipped with the formidable 98 hp, 4-cylinder Kubota engine with electronic Common Rail injection. The slightly longer wheelbase ensures optimal distribution of the tractor's weight.
All the models in the range can be equipped on request with the new Air cab (except for the TGF 10900 R, which is fitted with the Protector 100 cab) affording advanced technology and comfort, with a spacious operator position, notwithstanding the extremely compact dimensions which allow easy maneuvering in tight spaces and between crops. The cab is pressurized and available also in a Category 4 certified version, which offers the operator total protection from inhalation of harmful dust, gas and vapors.

Plus

Antonio Carraro | Plus | ACTIO

ACTIO™

RGS™

Antonio Carraro | Articulated tractors

Articulated chassis

Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

ESC / CRUISE CONTROL (ERGIT R)

Antonio Carraro | Plus | Grammer seat with pneumatic suspension

GRAMMER seat

Antonio Carraro | Front Protection | Bullbar

Bullbar

Antonio Carraro AIR cat 4 pressurized ROPS FOPS cab

AIR cab

Front Ballast

Antonio Carraro | Options | Joystick for SRX, SRH Infinity, Mach

Joystick JPM™

Cabs

AIR CAB


ROPS and FOPS homologated, pressurized and Category 4 certified

The AIR cab* offers maximum level operative comfort and safety.  The tractor and cab’s volumetric profile is harmonious and streamlined in order to grant agility and ease of movement in tight spaces and dense vegetation.  To guarantee a perfect working climate there is the efficient heating and ventilation system with an integrated air-conditioning system.  It has excellent all round visibility thanks to the cab’s many windows on all sides along with a porthole at the same height as the pedal board providing visibility over the ground.  The internal illumination allows for the tractor to be used comfortably even at night with constant control over all the functions.

The finely tuned soundproofing and the uncoupling of the cab from the tractor’s main body guarantees minimum noise levels when being driven.  The operator’s living space provides great freedom of movement for the legs. The powerful external lights positioned on the roof, together with the headlights on the tractor’s mudguards provide a great strip of light that illuminates the ground in the day and which also allows the operator to work in conditions of pitch black.  The Air cab was designed to always be “pressurised” and on request it is possible to have it Cat. 4 certified which guarantees the perfect isolation of the operator from dust, gas and aerosols in full accordance with the European legislation “UNI-EN 15695- CAT 4”.


NEW TRACTOR…

ACTIO –Antonio Carraro oscillating chassis: Ideal weight distribution, stability in slopes, Full adaptability to the soil, wide ground clearance;

ENGINE – 4 cyl 16V Kubota 3769 cc stage 3B 98 hp: Larger oil sump, low noise levels, low consumption, low vibration, efficiency with little heat production, low emissions.

TRANSMISSION Max speed up to 40km/h, disengageable 4WD, optimized hydraulic circuit (oil only when required; more efficient, more comfortable, more silent, more economic).
Silent PTO optimized for working above 100 hp;
New optional working range: optimizes the engine torque when a low PTO regime is required.

…NEW EXPERIENCE.


COMFORT

AIR Cab – The only class-4-pressurized, FOPS available on a reversible articulated tractor.
  - FOPS (falling objects protection) & ROPS (rollover protection) certification;
  - Costant Class 4 pressurization;
  - Acoustic and thermal insulation;
  - LED lighting (8 lights);
  - New silent block – More driving space, Perceived sound level inferior to 80dba*.

Damping standard – Pitch and swing damping system, active when the hydraulic lift is up. Available with standard hydraulic system and draft and position control.

Joystick – new ergonomics, more room for the feet.

Cruise control – standard (double speed memory).

*inside the cab

AGILITY
With its 1060 mm minimum width, SRX 10900 R is designed to work in vineyards and orchards with a minimum steering radius and the lowest possible compaction.
The weight distribution, optimized for attached devices, reduces the soil sinking within the rows and avoids root damage.
The reducers setup allows a good level of ground clearance despite the low profile, even with wide tyres.

DESIGN

Stage 3B engines – because of the addition of DPA filters for reducing emissions – are bulkier; Nevertheless, both rollbar and cab versions of SRX 10900 R maintain the same dimensions and visibility of its predecessors.
SRX 10900 R offers top visibility, ergonomics, beauty and functionality thanks also to the curved-glass windscreen, doors and rear window.


ASK A QUOTATION

In order to view youtube videos you must accept the cookie policy

Antonio Carraro, the world's most beautiful tractor

Antonio Carraro, the world's most beautiful tractor - Introducing the top range of specialized, compact tractors for vineyards, orchards, haymaking. Designed to work on impossible grounds, on mountains and hills, on slopes and through mud. The safest, the most comfortable, the most beautiful.
WATCH THE MOVIE
Antonio Carraro | Plus | ACTIO

ACTIO™

AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
MORE

RGS™

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
MORE
Antonio Carraro | Articulated tractors

Articulated chassis

The wheelbase, the limited external width and the articulated frame make the tractor very agile between crop rows. The smooth and sensitive hydroguide steering wheel assures precise maneuvering on steep slopes, in crossways movements, in bottlenecks, among crop rows and in car parks.
Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
[read]

ESC / CRUISE CONTROL (ERGIT R)

Electronic and automatic speed and engine rev control device. It memorizes and modulates the tractor speed at the operator's discretion.
Antonio Carraro | Plus | Grammer seat with pneumatic suspension

GRAMMER seat

Air suspension with load display - reclining backrest - lumbar support.

Optional
Antonio Carraro | Front Protection | Bullbar

Bullbar

Tubular steel guard protecting the bodywork; integrates the third-point for the front lift.

Optional
Antonio Carraro AIR cat 4 pressurized ROPS FOPS cab

AIR cab

The AIR cab offers maximum level operative comfort and safety. The tractor and cab’s volumetric profile is harmonious and streamlined in order to grant agility and ease of movement in tight spaces and dense vegetation. To guarantee a perfect working climate there is the efficient heating and ventilation system with an integrated air-conditioning system.
MORE


Optional

Front Ballast

Front ballast (88 kg) - Perfectly integrated into the bodywork of the tractor; it does not alter the wheelbase or dimensions of the tractor.
Antonio Carraro | Options | Joystick for SRX, SRH Infinity, Mach

Joystick JPM™

JPM™ Proportional Joystick - Available on demand electro-proportional hydraulic system controlled by joystick; 11 quick couplings; available also forcing pump for front hydraulic engine.

Optional
