TC 5800 F
Power
49,7 HP
Engine
Yanmar - 4 Cyl - 16V - 2188 CC
Transmission
12+12 synchronized w/ reverser
Weight (KG)
1760
Capacity (KG)
2200

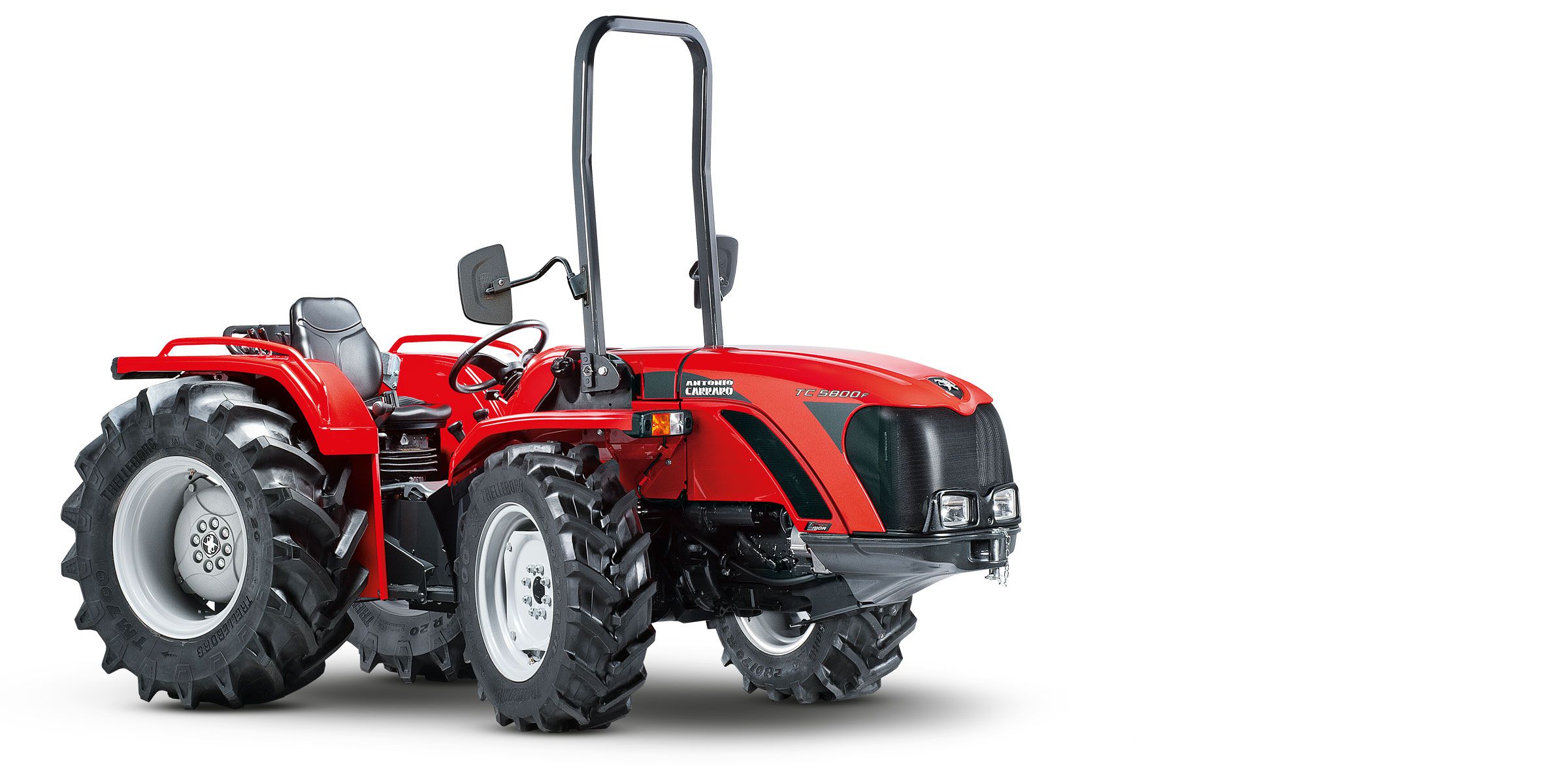

TC F Major - Steering tractor

MEDITERRANEAN BREEZE
Inspired by Mediterranean agriculture, this is a steering tractor (50 hp Yanmar engine) with different-size wheels for professional use. It is ideal for use in specialized applications on hillsides and mountains, offering the grip, handling and compact dimensions required to work on slopes and uneven terrain.
The dual clutch (independent PTO) confers practicality and operating efficiency when using implements. Independent PTO with oil-immersed clutch and hydraulic linkage with a lifting capacity of 2200 kg at the ball ends, allowing the use of professional implements. The disc brakes are also oil-immersed. A choice of hydraulic systems allows the tractor to be tailored to your exact needs.

The TC F Major aims for maximum operator comfort: the grab handles on the rear fenders, useful when working on slopes, assist access to a spacious driving position free from obstacles and comfortable for drivers of any stature.

Without doubt, the best available quality-price ratio for the modern farm.


The T Major series is made up of various steering or articulated models, with equal-sized or with larger rear wheels. Its perfect weight distribution, guaranteed by the ACTIO™, over all four wheels, ensures grip, stability and top level safety.
The difference between this series and the other basic AC series is the adoption of the “double clutch” (as it is called by the agricultural operators); namely the independent PTO that affords the tractor with great efficiency when using equipment. In addition the 12 front + 12 rear speed gearbox with inverter is synchronized with the draft position and control lift, with combined adjustment.


Plus

Antonio Carraro | Plus | ACTIO

ACTIO™

Antonio Carraro | steering tractors

Steering wheels

Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

Antonio Carraro | Comfort | Driver's seat

Comfort

Antonio Carraro | Plus | Mechanical 12+12 Transmission Major

Transmission - 12+12

Antonio Carraro | Options | Seat with pneumatic suspension

Pneumatic seat

​Steering column

Wheels ballasts

Antonio Carraro | Options | Tyres

Wheels

Antonio Carraro | Plus | ACTIO

ACTIO™

AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
MORE
Antonio Carraro | steering tractors

Steering wheels

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.

*optional
Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
[read]
Antonio Carraro | Comfort | Driver's seat

Comfort

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.
Antonio Carraro | Plus | Mechanical 12+12 Transmission Major

Transmission - 12+12

Gearbox with 12fwd + 12rev with reverser; Rear independent PTO with mechanic control; Front and rear differential locks, foot lock with automatic disengagement; Disengagement control for front drive wheels; Start inhibit switch on shuttle reverser and PTO selector.
Antonio Carraro | Options | Seat with pneumatic suspension

Pneumatic seat

Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).

Optional

​Steering column

Available also with adjustable steering column,

Wheels ballasts

Available with ballasts for front and rear wheels.
Antonio Carraro | Options | Tyres

Wheels

Available several sets of tyres suitable to every kind of ground, for a constant grip and a thrilling performance regardless of the soil conditions.
