TTR 10900 R
Power
98 HP
Engine
Kubota - 4 cyl - 16V - Turbo Stage 3B - Common Rail - EGR Injection with electronic control
Transmission
16+16 synchronized reverser
Weight (KG)
2165÷2355 (rollbar) 2295÷2485 (cab)
Capacity (KG)
2400

TTR 10900 R - Wide-track tractor for haymaking

With a 98 hp Kubota engine, this is a wide-track isodiametric tractor with reversible driving position, perfect for working on steep slopes, including side slopes, and ideal for haymaking.
The width of the tractor, combined with its low center of gravity, confers a sensation of extreme stability and safety when working on slopes, even in mountain pastures, with unrivalled speed, precision and freedom of movement. It also ideally suited to grass cutting, the maintenance of urban green spaces and countless other applications.

With the widest driving position in the Antonio Carraro range and an extremely roomy platform, the TTR 10900 R offers superb operator comfort.  A tractor for use all year round, perfectly suited to all conditions and any climate.
Available with the spacious Extra Comfort cab, featuring all-round glass for 360° visibility and luminous interior.


The R Series represents the top of the AC range for performance, technological content and on-board equipment, offering a host of useful functions as standard.
Thanks to CAN-bus technology, which allows instantaneous dialogue between the tractor's various electronic control units with a minimum number of connections, the operator can enjoy the benefits of electronic engine control, with all the controls conveniently located on the instrument panel, including the work speed memories and acceleration ramps. All the models are equipped with the formidable 98 hp, 4-cylinder Kubota engine with electronic Common Rail injection. The slightly longer wheelbase ensures optimal distribution of the tractor's weight.
All the models in the range can be equipped on request with the new Air cab (except for the TGF 10900 R, which is fitted with the Protector 100 cab) affording advanced technology and comfort, with a spacious operator position, notwithstanding the extremely compact dimensions which allow easy maneuvering in tight spaces and between crops. The cab is pressurized and available also in a Category 4 certified version, which offers the operator total protection from inhalation of harmful dust, gas and vapors.

Plus

Antonio Carraro | Plus | ACTIO

ACTIO™

RGS™

Antonio Carraro | steering tractors

Steering wheels

Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

Antonio Carraro | Comfort | Driver's seat

Comfort

Damping system

DAMPING

ESC / CRUISE CONTROL (ERGIT R)

UNIFLEX® Suspension

Antonio Carraro | Options | Seat with pneumatic suspension

Pneumatic seat

Antonio Carraro | Plus | Vertical tie-rod and hydraulic thirdpoint

Vertical tie-rod and hydraulic thirdpoint

Antonio Carraro | Radiator cleaning | Cleanfix

ACS - Auto-cleaning system

Superbrake

Antonio Carraro | Hydraulic system | Joystick TTR Ergit 100 7800 10900 Uniflex hydraulic suspension

Joystick - TTR

Antonio Carraro | Options | Froltlift

Front lift

Antonio Carraro | Optional | Air conditioner

Air conditioner

Cabs

Extra Comfort TTR Cab

CLOSED CAB
TTR Extra Comfort cab is a homologated, original AC product. Its sober, elegant design provides a total-glass structure in order to offer total visibility and on-board brightness. TTR in its standard version offers an open cab with front and rear windscreens. Often, however, the operator demands more comfort within a closed, air-conditioned cab, Wide and comfortable, Extra Comfort ensures protection in warm, cold or dusty environments, for mowing, road maintenance or construction. It deadens noises and vibratuions, giving the operator an excellent air-conditioning.

All the glass parts of the cabin can be opened.
In order to view youtube videos you must accept the cookie policy

Antonio Carraro, the world's most beautiful tractor

Antonio Carraro, the world's most beautiful tractor - Introducing the top range of specialized, compact tractors for steep slopes, vineyards, orchards, haymaking. Designed to work on impossible grounds, on mountains and hills, on slopes and through mud. The safest, the most comfortable, the most beautiful.
https://youtu.be/DgC34XvfSiE
Super-specialist

Suitable for mountain, hill and flat grazing fields, vineyards and fruit orchards, both flat and steep slopes.
Excellent for edge maintenance, town parks and sports grounds.
Perfect for grass cutting and haymaking on steep slopes, with speed, precision and unmatched manoeuvring on sloping grounds.
The ideal tractor for all conditions and climates, during the whole year.

Super comfort

Consistent optimum adhesion and stability, thanks to the wide track, the low centre of gravity and the 4-wheel drive.
Great performance engine, constant traction and reduced steering radius all ensures adaptation to all types of surfaces, uneven grounds and rough terrains.
The reversible drive, the multifunction joystick, the ergonomics and the high visibility levels, make the job of the operator simple and easy.
Antonio Carraro | Plus | ACTIO

ACTIO™

AC Full Chassis with Oscillation - cast iron full chassis hosting the tractor's transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil's sinuosity ensuring constant traction and grip.
MORE

RGS™

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
MORE
Antonio Carraro | steering tractors

Steering wheels

The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.

*optional
Antonio Carraro | Warranty | Extension 3 4 years

EXG Extended Warranty

As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
[read]
Antonio Carraro | Comfort | Driver's seat

Comfort

Thanks to the ACTIO™ Chassis, the driving position coincides with the center of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for nighttime use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.
Damping system

DAMPING

| Stability at all times
The Damping system, which is fitted as standard equipment and, when activated, compensates for stresses transmitted from the mounted implements, thereby increasing comfort while protecting both driver and machine from possible harm.

ESC / CRUISE CONTROL (ERGIT R)

Electronic and automatic speed and engine rev control device. It memorizes and modulates the tractor speed at the operator's discretion.

UNIFLEX® Suspension

The UNIFLEX suspension with coaxial cylinders maximises its efficiency thanks to a reduced number of friction points. Its innovative concept allows the equipment to follow and adapt itself to the contours of the ground, keeping the ground pressure constant thus benefitting speed and work precision.


Optional
Antonio Carraro | Options | Seat with pneumatic suspension

Pneumatic seat

Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).

Optional
Antonio Carraro | Plus | Vertical tie-rod and hydraulic thirdpoint

Vertical tie-rod and hydraulic thirdpoint

Optimizes the positioning and inclination of the equipment.

Optional
Antonio Carraro | Radiator cleaning | Cleanfix

ACS - Auto-cleaning system

Reverse flow fan that assures the constant cleaning and efficienc of the radiator and of the front grille of the bonnet.

Optional

Superbrake

More braking, more safety - Additional braking system, perfect for slope-parking. By activating the handbrake, with a subsequent pressure on the brake pedals all 4 oil disk brakes are blocked. The system works with the tractor engine both running or off.

Optional
Antonio Carraro | Hydraulic system | Joystick TTR Ergit 100 7800 10900 Uniflex hydraulic suspension

Joystick - TTR

Hydraulic system with 2 independent hydraulic pumps; Standard Joystick - rear auxiliary hydraulic system with electric-hydraulic control (joystick) with 2 double-acting distributors, 1 single-acting with oil reflow and 6 rear quick couplingscon ritorno olio e 6 quick couplings. Hydraulic lifting system with Uniflex hydro-pneumatic suspension with 3-point hitch; hydraulic suspension with on-off joystick
Antonio Carraro | Options | Froltlift

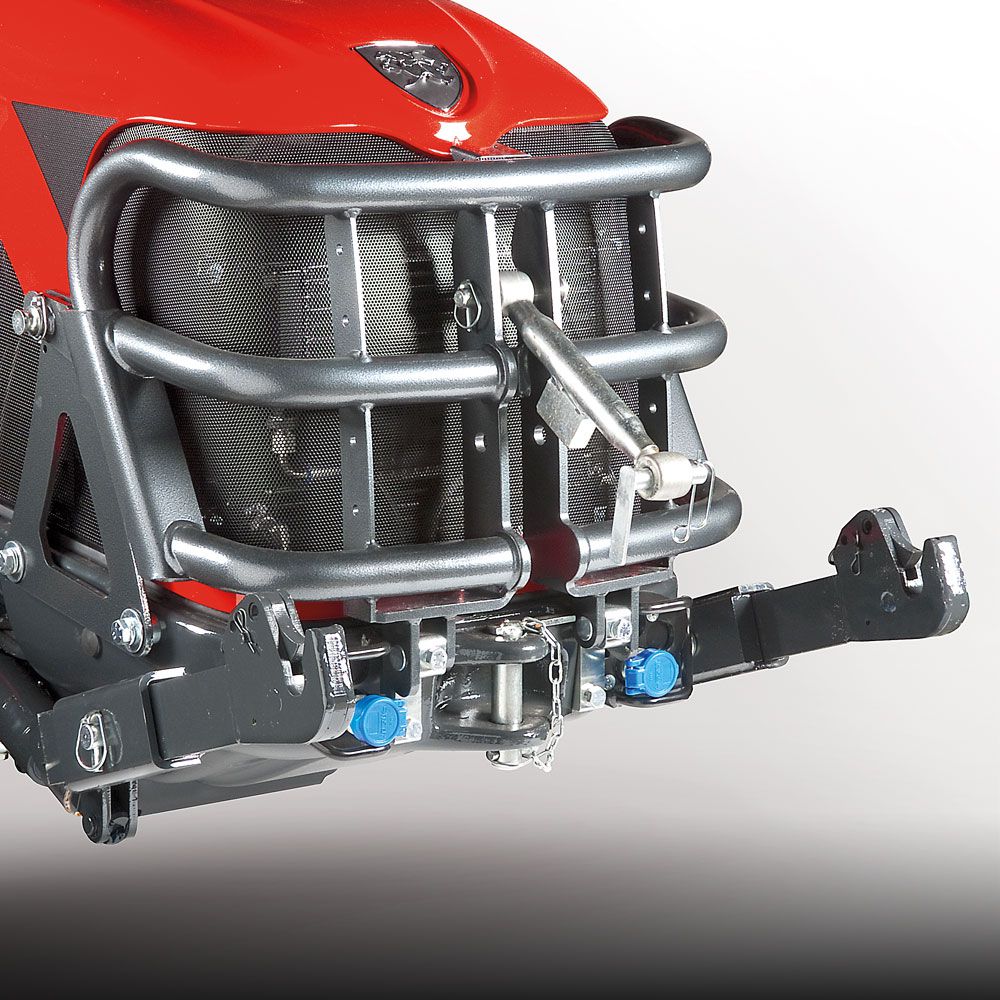

Front lift

Available on demand the front lifting system for the use frontal implements.

Optional
Antonio Carraro | Optional | Air conditioner

Air conditioner

The soundproof cab offers also an automatically controlled air conditioning system.
Optional
